Technical Specifications
Model:

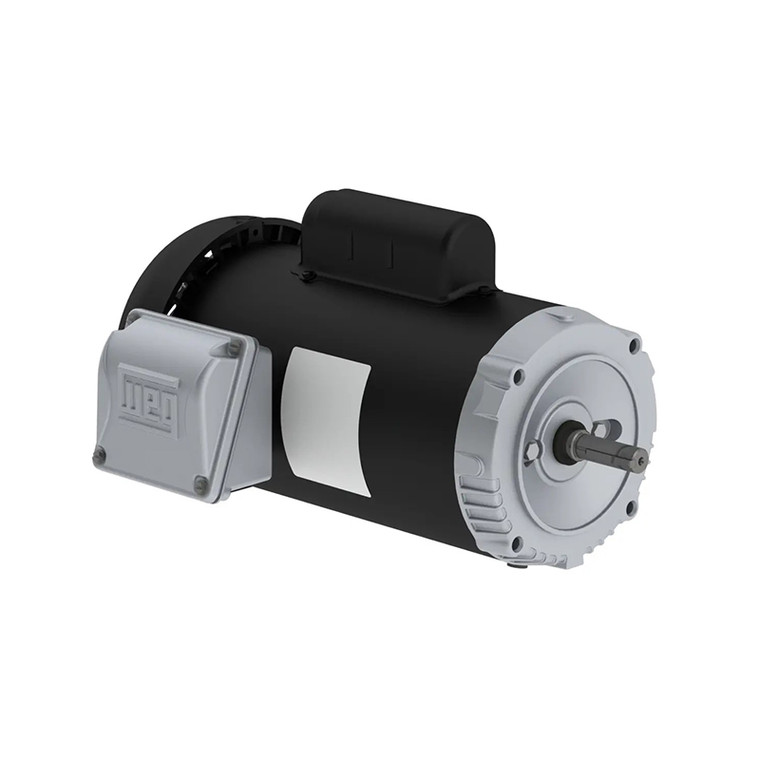

00118ES1ER143TC-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1745 RPM
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Single Phase
Service Factor:
1.15
Efficiency:
71%
Construction:
Rolled Steel
C Dimension:
13.97
Mounting Type:
Footless
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
3.4 A
