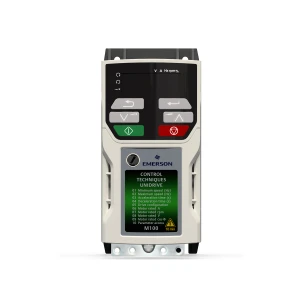

3/4HP 230V Control Techniques VFD, Inverter, AC Drive M100-02200033A (M100-02200033A)

Brand:
Control Techniques
Model:
M100-02200033A
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • M101 variant has additional speed reference potentiometer
  • Optional hot swappable AI-Back-up Adaptor allows the drive to use an SD card for parameter cloning and acts as an input for 24 V back-up. Can be used without line power. Optional AI-Smart Adapter has built-in memory for parameter cloning and 24 V backup
  • LED keypad fitted as standard for quick commissioning and easy use
  • User-friendly control connections
  • 10 set-up parameters listed on front cover
  • Easy-to-remove terminal cover with tool-less close system
  • Conventional surface and DIN rail mounting (DIN rail mounting available on size 1 and 2 only)*
  • Easy-to-disconnect internal EMC filter
  • User-friendly power connections for open loop vector or V/Hz induction motor control
  • Robust cable management system providing grounding point for shielded control and power cables

Technical Specifications

Model:
M100-02200033A
Brand:
Control Techniques
Product Condition:
New
Horsepower Rating:
0.75 HP
HP Rating @ 150% OL:
0.75 HP
Rated Amps:
3.3 A
Amp Rating @ 150% OL:
3.3 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
3.3 A
Phase Rating:
1 & 3 Phase Input - 3 Phase Output
Enclosure Rating:
IP 21
Series:
M100
Height:
7.10 in
Width:
3.00 in
Depth:
5.90 in

Product Information

Control Techniques M100 Series

The M100 series is designed specifically for industrial applications and delivers an economical open loop drive using Control Techniques’ proven quality and class leading motor operation. Typical applications include:

  • Frequency control for conveyors
  • Fans
  • Pumps
  • Mixers
