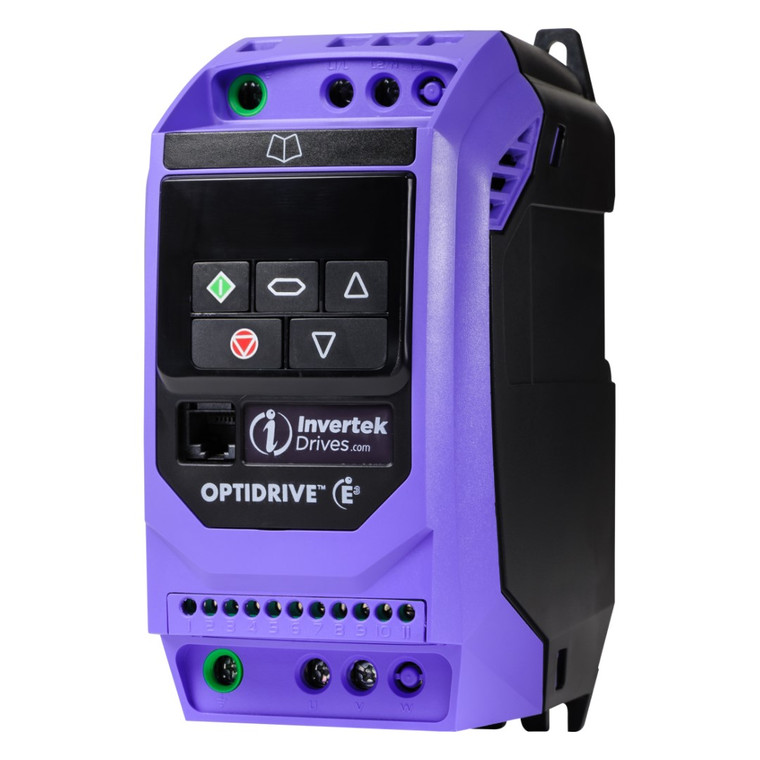

0.5HP, 115V, Invertek Optidrive E3 Single Phase VFD (ODE-3-110070-1F12-01)

Brand:
INVERTEK
Model:
ODE-3-110070-1F12-01
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $805.00
Online Price: $431.26
Adding to cart… The item has been added

Invertek variable frequency drives focus on performing well, providing simple programming, and fitting your application.

ODE-3-110070-1F12-01

  • 0.5 Horsepower
  • 7 Amps
  • 115 Volts
  • IP 20
  • 1 Phase Input - 1 Phase Output

Technical Specifications

Model:
ODE-3-110070-1F12-01
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
0.5 HP
HP Rating @ 150% OL:
0.5 HP
Rated Amps:
7 A
Amp Rating @ 150% OL:
7 A
Rated Voltage:
115 V
Rated Input Frequency:
60 Hz
Output Voltage:
115 V
Output Amperage Rating:
7 A
Phase Rating:
1 Phase Input - 1 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Single Phase
Enclosure Rating:
IP 20
Frame Size:
1
Series:
Optidrive E3 Single Phase
Height:
6.18 in
Width:
3.27 in
Depth:
4.84 in

Product Information

INVERTEK Optidrive E3 Single Phase Series

Invertek focuses on sophisticated motor controls for energy savings. The Optidrive E3 is easy to understand and use. The space-saving design helps fit in compact applications.

Standard Features

  • Simple commissioning with 14 parameter basic setup and default settings suitable for most applications
  • Contactor-style connections for simple wiring
  • Intuitive keypad with precise digital control at the touch of a button
  • Applications macros to switcch between industrial, pump, and fan modes
  • Internal category C1 EMC filter
  • Single phase input and output options
