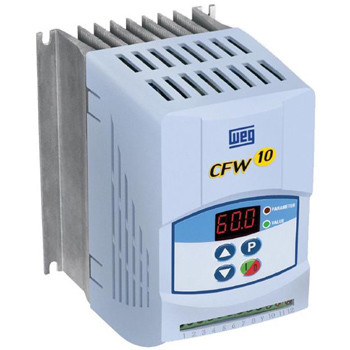

1/4HP 230V WEG VFD, Inverter, AC Drive CFW100016SDZ (CFW100016SDZ)

1/4HP 230V WEG VFD, Inverter, AC Drive CFW100016SDZ (CFW100016SDZ)

Brand:
WEG
Model:
CFW100016SDZ
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • V/Hz control
  • IP20 finger safe enclosure
  • Single Phase 110-127V input voltage up to 1 HP
  • Single Phase 200–240V input voltage up to 3 HP
  • 150% current overload capacity
  • DSP controlled PWM output
  • 2.5-15 kHz adjustable switching frequency
  • Four isolated programmable digital inputs
  • Programmable relay output
  • One isolated programmable analog input
  • Diagnostic features: Over current, motor overload, drive over temperature, output short circuit, DC bus over and under voltage and external fault
  • Control features: Linear and S-Ramp acceleration and deceleration, local / remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, minimum and maximum adjustable frequency limits, adjustable output current limit, JOG
  • Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
  • Ambient: 122°F (50°C), 3300 ft (1000 m) altitude, 90% humidity, non-condensing
    • Write a Review

    Technical Specifications

    Product Information

    WEG CFW10 Series

    WEG CFW10 Series Phase Converter AC Drive

    The CFW10 is an economical solution to many applications on the Farm, in the Factory and in the Home Shop. It's a low cost solution for operating three phase motors where only single phase power exists. The CFW10 takes single phase 115 or 230 volt input power and converts it to three phase 230 volts without the need for a transformer. A simple programming keypad and a bright LED display make the drive easy to program and operate while giving the user flexibility to customize the operation for their needs. This rugged drive is capable of operating in ambient temperatures up to 122°F (50°C) without de-rating. The CFW10 is a simple, rugged drive that will give long lasting performance in the most extreme conditions.

    Features:

    Standard Features

    Drive Details

    Manufacturer
    WEG

    Series
    CFW10

    Model
    CFW100016SDZ

    Condition
    New

    Constant/Variable Torque
    CT

    Horse Power
    1/4 HP

    Maximum Amps
    1.6 A

    Input
    1-Phase
    200-240V

    Output
    3-Phase
    200-240V

    Dimensions
    Height: 5.20 in
    Width: 3.80 in
    Depth: 4.80 in

    Enclosure
    IP20

    Download Manual
