Technical Specifications

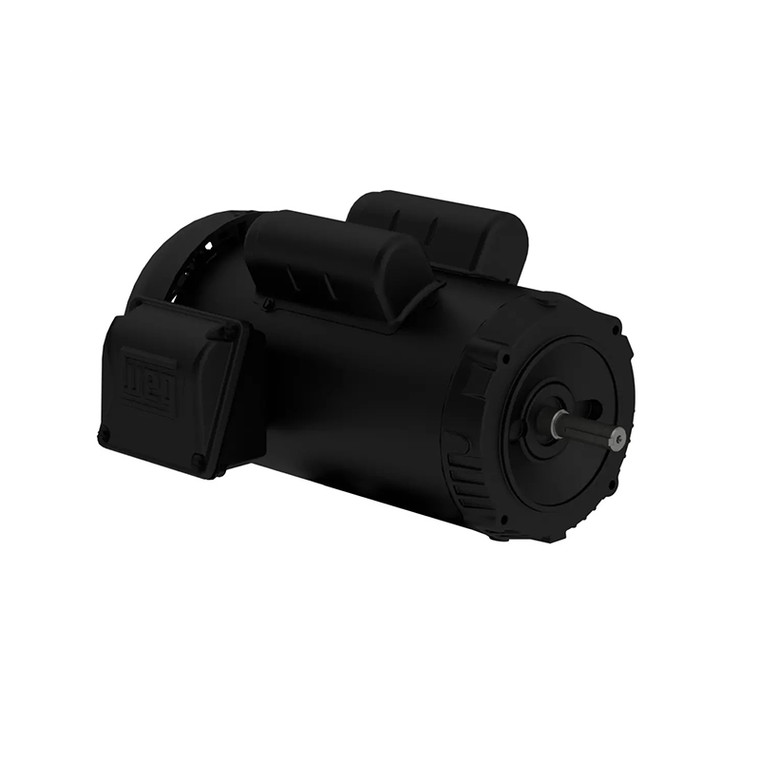

Model:
.7536ES1B56CFL-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.75 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3500 RPM
Frame Size:
56C
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Efficiency:
66%
Construction:
Rolled Steel
C Dimension:
12.721
Mounting Type:
Footless
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4 A
