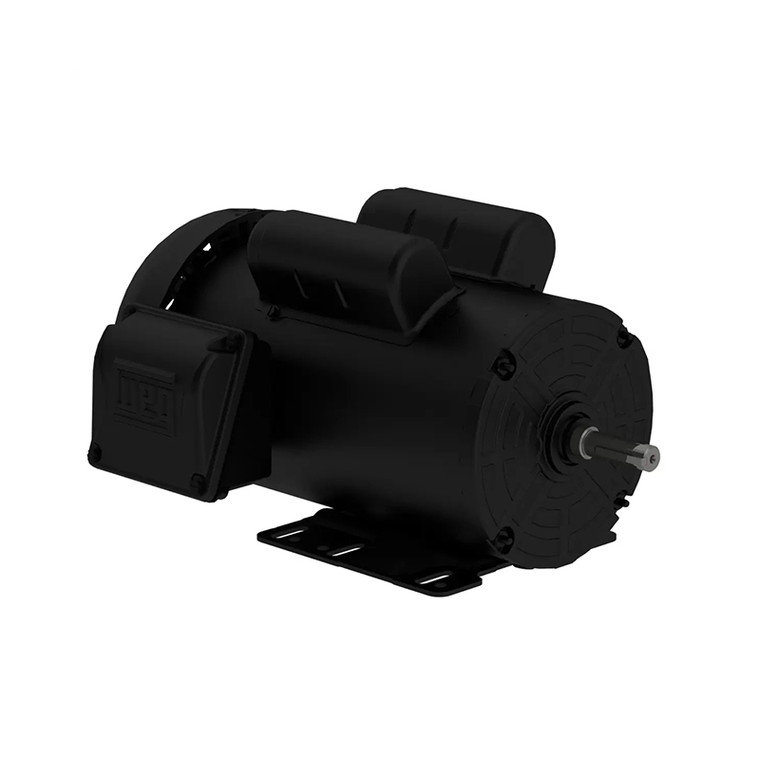

WEG, AC Motor, .7512ES1B56C-S, 0.75 HP, 1200 RPM, 56HC, Single Phase, 115/208-230 V, 60 Hz (.7512ES1B56C-S)

WEG, AC Motor, .7512ES1B56C-S, 0.75 HP, 1200 RPM, 56HC, Single Phase, 115/208-230 V, 60 Hz (.7512ES1B56C-S)

Brand:
WEG
Model:
.7512ES1B56C-S
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $669.00
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
.7512ES1B56C-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.75 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1170 RPM
Frame Size:
56HC
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Efficiency:
70%
Construction:
Rolled Steel
C Dimension:
14.295
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.7 A

Product Information

WEG Series

SINGLE-PHASE GENERAL PURPOSE MOTORS; The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for Severe duty use.
