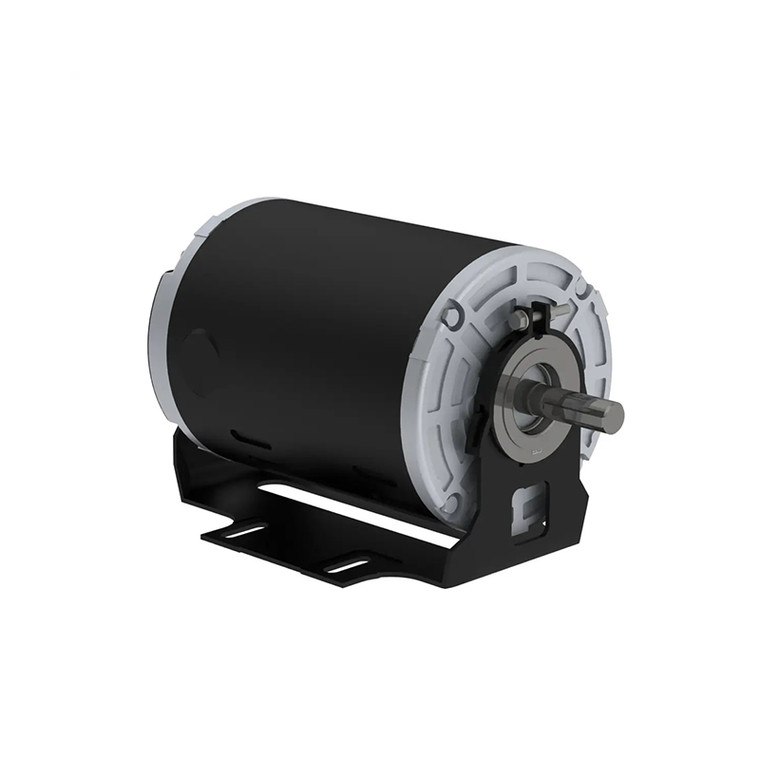

WEG, AC Motor, .3318OS1BSPRBW56-S, 0.33 HP, 1800 RPM, W56, Single Phase, 115/208-230 V, 60 Hz (.3318OS1BSPRBW56-S)

WEG, AC Motor, .3318OS1BSPRBW56-S, 0.33 HP, 1800 RPM, W56, Single Phase, 115/208-230 V, 60 Hz (.3318OS1BSPRBW56-S)

Brand:
WEG
Model:
.3318OS1BSPRBW56-S
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$276.00
Online Price: $262.20
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
.3318OS1BSPRBW56-S
Brand:
WEG
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.33 HP
Synchronous RPM:
1800 RPM
Frame Size:
W56
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V, 230 V, 115 V
Phase:
Single Phase
Service Factor:
1.35
Efficiency:
62%
Construction:
Rolled Steel
C Dimension:
10.138
Mounting Type:
Foot Mount
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.6 A

Product Information

WEG Series

SINGLE-PHASE GENERAL PURPOSE MOTORS; The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for Severe duty use.
