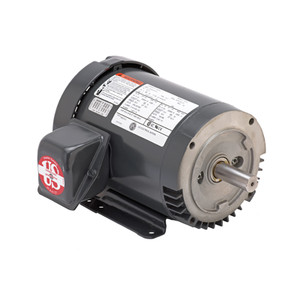

US Motors (Nidec), AC Motor, U14S2DCR, 0.25 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 56C (U14S2DCR)
- Model:
- U14S2DCR
- Brand:
- US Motors (Nidec)
- Product Condition:
- New
- Motor Type:
- General Purpose
- Horsepower Rating:
- 0.25 HP
- Synchronous RPM:
- 1800 RPM
- Frame Size:
- 56C
- Rated Supply Voltage:
- 208-230/460 & 190/380 V
- Motor Enclosure Type:
- Totally Enclosed Fan Cooled (TEFC)
- Motor Design Class:
- B
- Full Load Torque:
- 0.8
- Rated Voltage:
- 208 V
- Rated Voltage:
- 230 V
- Rated Voltage:
- 380 V
- Rated Voltage:
- 460 V
- Phase:
- Three Phase
- Service Factor:
- 1.25
- Insulation Class:
- F
- Duty Cycle:
- Continuous
- Efficiency:
- 70%
- Construction:
- Aluminum
- C Dimension:
- 10.8
- Bearing Type:
- 6203-2Z-J/C3
- Rated Input Frequency:
- 60 Hz
- Rated Input Frequency:
- 50 Hz
- Motor Full Load Amps:
- 1-1/0.5 A
- Weight:
- 23.00 LBS
