Galt Electric ODP Motors

  • GALT ELECTRIC logo Galt Electric ODP Motor GDP25004-447TS-K, 250HP, 1800RPM, 3-Phase, 460V, 60Hz, 447TS (GDP2500-4-447TS-K)

    Galt Electric ODP Motor GDP25004-447TS-K, 250HP, 1800RPM, 3-Phase, 460V, 60Hz, 447TS (GDP2500-4-447TS-K)

    • Model:
      GDP25004-447TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Full Load Torque:
      737.8
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.87
    • Efficiency:
      96.2%
    • C Dimension:
      43
    • Phase:
      Three Phase
    • Horsepower Rating:
      250 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      447TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Rated Voltage:
      460 V
    • Construction:
      Cast Iron
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      280 A
    • Series:
      GDP
    • Weight:
      2.00 LBS
    Out Of Stock
    Online Price: $9,385.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP25002-445TS-K, 250HP, 3600RPM, 3-Phase, 460V, 60Hz, 445TS (GDP2500-2-445TS-K)

    Galt Electric ODP Motor GDP25002-445TS-K, 250HP, 3600RPM, 3-Phase, 460V, 60Hz, 445TS (GDP2500-2-445TS-K)

    • Model:
      GDP25002-445TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      250 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      445TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      367.38
    • Rated Voltage:
      460 V
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.91
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      34.75
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      270 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $17,456.92
    Online Price: $8,728.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP20006-449T-K, 200HP, 1200RPM, 3-Phase, 460V, 60Hz, 449T (GDP2000-6-449T-K)

    Galt Electric ODP Motor GDP20006-449T-K, 200HP, 1200RPM, 3-Phase, 460V, 60Hz, 449T (GDP2000-6-449T-K)

    • Model:
      GDP20006-449T-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      1200 RPM
    • Frame Size:
      449T
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      885
    • Rated Voltage:
      460 V
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.85
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      48
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      230 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      2.00 LBS
    Out Of Stock
    List Price:  $17,616.92
    Online Price: $8,808.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP20002-444TS-K, 200HP, 3600RPM, 3-Phase, 460V, 60Hz, 444TS (GDP2000-2-444TS-K)

    Galt Electric ODP Motor GDP20002-444TS-K, 200HP, 3600RPM, 3-Phase, 460V, 60Hz, 444TS (GDP2000-2-444TS-K)

    • Model:
      GDP20002-444TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Full Load Torque:
      293.9
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.9
    • Efficiency:
      95%
    • C Dimension:
      34.75
    • Phase:
      Three Phase
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      444TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Rated Voltage:
      460 V
    • Construction:
      Cast Iron
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      219 A
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $15,442.92
    Online Price: $7,721.46
    Adding to cart… The item has been added
    VIEW DETAILS

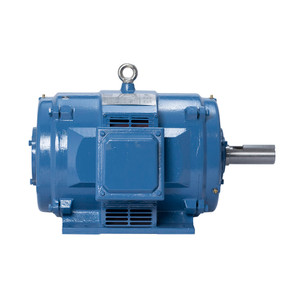

  • GALT ELECTRIC logo Galt Electric ODP Motor GDP15006-447T-K, 150HP, 1200RPM, 3-Phase, 460V, 60Hz, 447T (GDP1500-6-447T-K)

    Galt Electric ODP Motor GDP15006-447T-K, 150HP, 1200RPM, 3-Phase, 460V, 60Hz, 447T (GDP1500-6-447T-K)

    • Model:
      GDP15006-447T-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      1200 RPM
    • Frame Size:
      447T
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      664.5
    • Rated Voltage:
      460 V
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.85
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      43
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      173 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $15,882.92
    Online Price: $7,941.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP15004-444TS-K, 150HP, 1800RPM, 3-Phase, 460V, 60Hz, 444TS (GDP1500-4-444TS-K)

    Galt Electric ODP Motor GDP15004-444TS-K, 150HP, 1800RPM, 3-Phase, 460V, 60Hz, 444TS (GDP1500-4-444TS-K)

    • Model:
      GDP15004-444TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Full Load Torque:
      442.74
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.88
    • Efficiency:
      95.8%
    • C Dimension:
      39.5
    • Phase:
      Three Phase
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      444TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Rated Voltage:
      460 V
    • Construction:
      Cast Iron
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      167 A
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    Online Price: $7,531.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP15002-405TS-K, 150HP, 3600RPM, 3-Phase, 460V, 60Hz, 405TS (GDP1500-2-405TS-K)

    Galt Electric ODP Motor GDP15002-405TS-K, 150HP, 3600RPM, 3-Phase, 460V, 60Hz, 405TS (GDP1500-2-405TS-K)

    • Model:
      GDP15002-405TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      405TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      220.42
    • Rated Voltage:
      460 V
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.9
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • C Dimension:
      30.3
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      166 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $11,416.92
    Online Price: $5,708.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP12506-445T-K, 125HP, 1200RPM, 3-Phase, 460V, 60Hz, 445T (GDP1250-6-445T-K)

    Galt Electric ODP Motor GDP12506-445T-K, 125HP, 1200RPM, 3-Phase, 460V, 60Hz, 445T (GDP1250-6-445T-K)

    • Model:
      GDP12506-445T-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1200 RPM
    • Frame Size:
      445T
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      553.5
    • Rated Voltage:
      460 V
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.84
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      39.5
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      146 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $14,230.92
    Online Price: $7,115.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP12504-405TS-K, 125HP, 1800RPM, 3-Phase, 460V, 60Hz, 405TS (GDP1250-4-405TS-K)

    Galt Electric ODP Motor GDP12504-405TS-K, 125HP, 1800RPM, 3-Phase, 460V, 60Hz, 405TS (GDP1250-4-405TS-K)

    • Model:
      GDP12504-405TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Full Load Torque:
      368.93
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.87
    • Efficiency:
      95.4%
    • C Dimension:
      33.3
    • Phase:
      Three Phase
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      405TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Rated Voltage:
      460 V
    • Construction:
      Cast Iron
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      141 A
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    Online Price: $5,303.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP12502-404TS-K, 125HP, 3600RPM, 3-Phase, 460V, 60Hz, 404TS (GDP1250-2-404TS-K)

    Galt Electric ODP Motor GDP12502-404TS-K, 125HP, 3600RPM, 3-Phase, 460V, 60Hz, 404TS (GDP1250-2-404TS-K)

    • Model:
      GDP12502-404TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      404TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      183.75
    • Rated Voltage:
      460 V
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.9
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • C Dimension:
      30.3
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      138 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $9,068.92
    Online Price: $4,534.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP10006-444T-K, 100HP, 1200RPM, 3-Phase, 208, 230, 460V, 60Hz, 444T (GDP1000-6-444T-K)

    Galt Electric ODP Motor GDP10006-444T-K, 100HP, 1200RPM, 3-Phase, 208, 230, 460V, 60Hz, 444T (GDP1000-6-444T-K)

    • Model:
      GDP10006-444T-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      100 HP
    • Synchronous RPM:
      1200 RPM
    • Frame Size:
      444T
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      442.5
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.84
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      39.5
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      117 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    List Price:  $13,166.92
    Online Price: $6,583.46
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo Galt Electric ODP Motor GDP10004-404TS-K, 100HP, 1800RPM, 3-Phase, 208, 230, 460V, 60Hz, 404TS (GDP1000-4-404TS-K)

    Galt Electric ODP Motor GDP10004-404TS-K, 100HP, 1800RPM, 3-Phase, 208, 230, 460V, 60Hz, 404TS (GDP1000-4-404TS-K)

    • Model:
      GDP10004-404TS-K
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      100 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      404TS
    • Motor Enclosure Type:
      Open Drip Proof (ODP)
    • Full Load Torque:
      296
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Power Factor:
      0.87
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      33.3
    • Rated Input Frequency:
      60 Hz
    • Rated Amps:
      112 A
    • Phase:
      Three Phase
    • Series:
      GDP
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
