Galt Electric G300 Series Inverters

Galt G300 Series - The Fine line between simplicity and performance

Galt Electric G300 Series Inverter

The G300 series is a high performance and high precision VFD compatible with asynchronous and permanent magnet synchronous motors. The G300 series provides wide voltage ranges and several different methods (MODBUS, PROFIBUS, CAN, and ethernet) to communicate with the VFD. The G300 relies upon a 32-bit DSP and utilizes an advanced vector control alogrithm to provide a high performance and high precision motor control. It can also be used with the GRKP300LCD Keypad for a more diverse set up.

  • Air-cooling technology implemented
  • Outstanding Motor Driving Performance (1:200 speed ratio)
  • Accurate parametric auto tuning of motor
  • Compatible with a range of different motors
  • External keypad used to change input/output settings easily
  • Runs 20% smoother and quieter compared with a common VFD QR Code
  • Display for Additional Parameter Information and Fault Troubleshooting
  • High performance open or closed-loop sensorless vector control
  • Accurate static and rotating autotuning
  • DC injection, dynamic, flux, and short-circuit braking
  • Built-in EMC filter

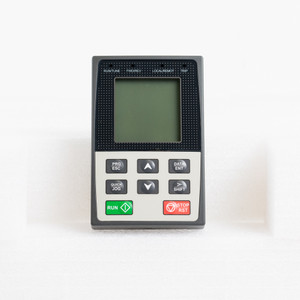

  • Detachable LED keypad with upgrade option (LCD keypad) available
  • Integrated PID controller 8 digital inputs, 2 open-collector outputs; 2 relay outputs, 2 form C
  • relay outputs; 3 analog inputs, 2 analog outputs


Videos


VFD Quick Start Guide

Quick start guide for G200, G300, G500 series VFD


How to Program a Galt Electric G300 Series VFD

Basic programming instructions for the Galt Electric G300 series VFDs




How to Wire a Galt Electric G300 Series VFD

Wiring instructions for the Galt Electric G300 series VFDs


How to Maintain Your VFD

Some suggestions for maintaining your VFDs




How to Troubleshoot Error Codes on Your VFD

Your VFD is tripping and giving you an error code? What do you do from here?


  • GALT ELECTRIC logo 1HP, 240V, Galt Electric G300 VFD (G320-00045UL-01)

    1HP, 240V, Galt Electric G300 VFD (G320-00045UL-01)

    • Model:
      G320-00045UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      1 HP
    • HP Rating @ 150% OL:
      1 HP
    • Rated Amps:
      4.5 A
    • Amp Rating @ 150% OL:
      4.5 A
    • Rated Voltage:
      230 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      230 V
    • Output Amperage Rating:
      4.5 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      5.95 LBS
    In Stock
    List Price:  $399.00
    Online Price: $299.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 25HP, 240V, Galt Electric G300 VFD (G320-00700UL-01)

    25HP, 240V, Galt Electric G300 VFD (G320-00700UL-01)

    • Model:
      G320-00700UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      25 HP
    • HP Rating @ 150% OL:
      25 HP
    • Rated Amps:
      70 A
    • Amp Rating @ 150% OL:
      70 A
    • Rated Voltage:
      230 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      230 V
    • Output Amperage Rating:
      70 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      70.55 LBS
    In Stock
    List Price:  $1,703.00
    Online Price: $1,277.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 3HP, 240V, Galt Electric G300 VFD (G320-00100UL-01)

    3HP, 240V, Galt Electric G300 VFD (G320-00100UL-01)

    • Model:
      G320-00100UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      3 HP
    • HP Rating @ 150% OL:
      3 HP
    • Rated Amps:
      10 A
    • Amp Rating @ 150% OL:
      10 A
    • Rated Voltage:
      230 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      230 V
    • Output Amperage Rating:
      10 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      8.82 LBS
    In Stock
    List Price:  $540.00
    Online Price: $405.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 2HP, 480V, Galt Electric G300 VFD (G340-00037UL-01)

    2HP, 480V, Galt Electric G300 VFD (G340-00037UL-01)

    • Model:
      G340-00037UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      2 HP
    • HP Rating @ 120% OL:
      2 HP
    • HP Rating @ 150% OL:
      2 HP
    • Rated Amps:
      3.7 A
    • Amp Rating @ 120% OL:
      3.7 A
    • Amp Rating @ 150% OL:
      3.7 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      3.7 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Variable Torque/Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      5.95 LBS
    In Stock
    List Price:  $420.00
    Online Price: $315.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 150HP, 575V, Galt Electric G300 VFD (G360-01500UL-01)

    150HP, 575V, Galt Electric G300 VFD (G360-01500UL-01)

    • Model:
      G360-01500UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      150 HP
    • HP Rating @ 150% OL:
      150 HP
    • Rated Amps:
      150 A
    • Amp Rating @ 150% OL:
      150 A
    • Rated Voltage:
      575 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      575 V
    • Output Amperage Rating:
      150 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      125.66 LBS
    In Stock
    List Price:  $9,820.00
    Online Price: $7,365.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 700HP, 480V, Galt Electric G300 VFD (G340-08600UL-01)

    700HP, 480V, Galt Electric G300 VFD (G340-08600UL-01)

    • Model:
      G340-08600UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      600 HP
    • Horsepower Rating:
      700 HP
    • HP Rating @ 120% OL:
      700 HP
    • HP Rating @ 150% OL:
      600 HP
    • Rated Amps:
      720 A
    • Amp Rating @ 120% OL:
      860 A
    • Amp Rating @ 150% OL:
      720 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      860 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Variable Torque/Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Rated Amps:
      860 A
    • Weight:
      996.49 LBS
    In Stock
    List Price:  $39,196.00
    Online Price: $29,396.92
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 300HP, 480V, Galt Electric G300 VFD (G340-03800UL-01)

    300HP, 480V, Galt Electric G300 VFD (G340-03800UL-01)

    • Model:
      G340-03800UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      275 HP
    • Horsepower Rating:
      300 HP
    • HP Rating @ 120% OL:
      300 HP
    • HP Rating @ 150% OL:
      275 HP
    • Rated Amps:
      340 A
    • Amp Rating @ 120% OL:
      380 A
    • Amp Rating @ 150% OL:
      340 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      380 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Variable Torque/Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Rated Amps:
      380 A
    • Weight:
      211.64 LBS
    In Stock
    List Price:  $11,107.00
    Online Price: $8,330.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 700HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-08600HDUL-01 (G340-08600HDUL-01)

    700HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-08600HDUL-01 (G340-08600HDUL-01)

    • Model:
      G34008600HDUL01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • HP Rating @ 150% OL:
      700 HP
    • Amp Rating @ 150% OL:
      860 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      860 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Variable Torque/Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Horsepower Rating:
      700 HP
    • Rated Amps:
      860 A
    • Weight:
      996.49 LBS
    Out Of Stock
    List Price:  $33,108.00
    Online Price: $24,831.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 100HP & 125HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-01800UL-01-60 (G34001800UL01-0U53D)

    100HP & 125HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-01800UL-01-60 (G34001800UL01-0U53D)

    • Model:
      G340-01800UL-01-60
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      Used
    • Warranty:
      3 Years
    • Horsepower Rating:
      100 HP
    • Horsepower Rating:
      125 HP
    • HP Rating @ 120% OL:
      125 HP
    • HP Rating @ 150% OL:
      100 HP
    • Rated Amps:
      150 A
    • Amp Rating @ 120% OL:
      180 A
    • Amp Rating @ 150% OL:
      150 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      150 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Variable Torque/Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Rated Amps:
      180 A
    • Weight:
      148.00 LBS
    Out Of Stock
    List Price:  $5,784.00
    Online Price: $4,000.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 100HP, 575V, Galt Electric G300 VFD (G360-00980UL-01)

    100HP, 575V, Galt Electric G300 VFD (G360-00980UL-01)

    • Model:
      G360-00980UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      100 HP
    • HP Rating @ 150% OL:
      100 HP
    • Rated Amps:
      98 A
    • Amp Rating @ 150% OL:
      98 A
    • Rated Voltage:
      575 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      575 V
    • Output Amperage Rating:
      98 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      125.66 LBS
    Out Of Stock
    List Price:  $5,865.00
    Online Price: $4,399.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • GALT ELECTRIC logo 75HP, 575V, Galt Electric G300 VFD (G360-00860UL-01)

    75HP, 575V, Galt Electric G300 VFD (G360-00860UL-01)

    • Model:
      G360-00860UL-01
    • Brand:
      GALT ELECTRIC
    • Product Condition:
      New
    • Warranty:
      3 Years
    • Horsepower Rating:
      75 HP
    • HP Rating @ 150% OL:
      75 HP
    • Rated Amps:
      86 A
    • Amp Rating @ 150% OL:
      86 A
    • Rated Voltage:
      575 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      575 V
    • Output Amperage Rating:
      86 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      G300
    • Weight:
      125.66 LBS
    Out Of Stock
    List Price:  $4,793.00
    Online Price: $3,595.00
