Corro-Duty

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT10P1DE, 10 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 215HP (CNT10P1DE)

    • Model:
      CNT10P1DE
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      10 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      215HP
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      14.9
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      22.4
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      26.4-23.5/11.8 A
    • Weight:
      230.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT100P2FG, 100 HP, 1800 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 405HP (CNT100P2FG)

    • Model:
      CNT100P2FG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      100 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      405HP
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      294.7
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • C Dimension:
      38.1
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      113 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT100P1FG, 100 HP, 3600 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 405HP (CNT100P1FG)

    • Model:
      CNT100P1FG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      100 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      405HP
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      147.4
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.5%
    • C Dimension:
      38.1
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      112 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P3G, 7.5 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 254T (C7P3G)

    US Motors (Nidec), AC Motor, C7P3G, 7.5 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 254T (C7P3G)

    • Model:
      C7P3G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1185 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      A
    • Full Load Torque:
      33.2
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      25
    • Bearing Type:
      6309-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      7.9 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P3B, 7.5 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 254T (C7P3B)

    US Motors (Nidec), AC Motor, C7P3B, 7.5 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 254T (C7P3B)

    • Model:
      C7P3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1185 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      33.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • Construction:
      Cast Iron
    • C Dimension:
      25
    • Bearing Type:
      6309-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      19/9.5 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

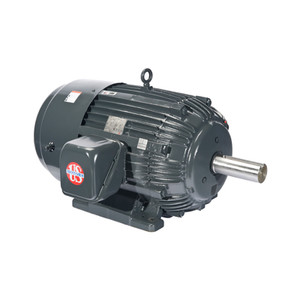

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P2G, 7.5 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 213T (C7P2G)

    US Motors (Nidec), AC Motor, C7P2G, 7.5 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 213T (C7P2G)

    • Model:
      C7P2G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1765 RPM
    • Frame Size:
      213T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      20
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      7.5 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P2DCR, 7.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213TC (C7P2DCR)

    US Motors (Nidec), AC Motor, C7P2DCR, 7.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213TC (C7P2DCR)

    • Model:
      C7P2DCR
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      213TC
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      22.7
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      20.1-18.6/9.3 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P2BC, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213TC (C7P2BC)

    US Motors (Nidec), AC Motor, C7P2BC, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213TC (C7P2BC)

    • Model:
      C7P2BC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1765 RPM
    • Frame Size:
      213TC
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      20.7
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      18.6/9.3 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P2B, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213T (C7P2B)

    US Motors (Nidec), AC Motor, C7P2B, 7.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 213T (C7P2B)

    • Model:
      C7P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1765 RPM
    • Frame Size:
      213T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      20
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      18.6/9.3 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

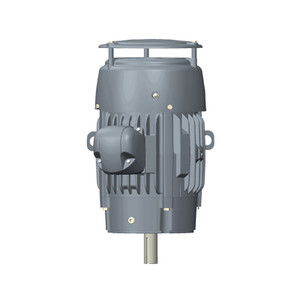

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P1DCR, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213TC (C7P1DCR)

    US Motors (Nidec), AC Motor, C7P1DCR, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213TC (C7P1DCR)

    • Model:
      C7P1DCR
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      213TC
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      11.2
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      22.7
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      19.9-17.8/8.9 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P1BC, 7.5 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 213TC (C7P1BC)

    US Motors (Nidec), AC Motor, C7P1BC, 7.5 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 213TC (C7P1BC)

    • Model:
      C7P1BC
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3530 RPM
    • Frame Size:
      213TC
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      11.2
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • Construction:
      Cast Iron
    • C Dimension:
      20.7
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      17.8/8.9 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C7P1B, 7.5 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 213T (C7P1B)

    US Motors (Nidec), AC Motor, C7P1B, 7.5 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 213T (C7P1B)

    • Model:
      C7P1B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3530 RPM
    • Frame Size:
      213T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      11.2
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • Construction:
      Cast Iron
    • C Dimension:
      20
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      17.8/8.9 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
