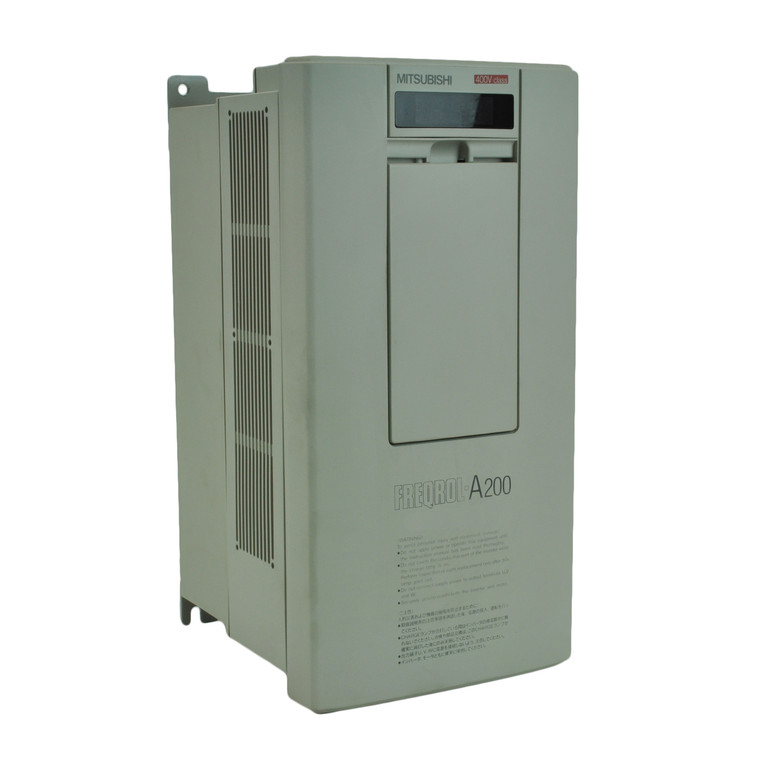

7.5HP 230V Mitsubishi VFD, Inverter, AC Drive FR-A221E-5.5K-UL

Brand: MITSUBISHI
Model: FR-A221E-5.5K-UL
Condition: New with Defects or Obsolete
Rating:
0% of 100

Out of stock

Highlights

Drive Details

Manufacturer
Mitsubishi

Series
A201E

Model
FR-A221E-5.5K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
7.5 HP

Maximum Amps
24 A

Input
3-Phase
200-230V

Output
3-Phase
200-230V

Dimensions
Height: 18.50 in
Width: 9.84 in
Depth: 10.63 in

Enclosure
IP00

Technical Specifications
Brand MITSUBISHI
Horsepower Rating 7.5 HP
Rated Voltage 230 V
Phase Three Phase
Series A201E
Output Voltage 230 V
Product Condition New with Defects or Obsolete
Enclosure Rating IP 00
Output Amperage Rating 24 A
Phase Rating 3 Phase Input - 3 Phase Output
Rated Amps 24 A
Model FR-A221E-5.5K-UL
Amp Rating @ 150% OL 24 A
HP Rating @ 150% OL 7.5 HP
Product Information

MITSUBISHI A201E Series

Mitsubishi A201E Series AC Drive

Highlights

Drive Details

Manufacturer
Mitsubishi

Series
A201E

Model
FR-A221E-5.5K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
7.5 HP

Maximum Amps
24 A

Input
3-Phase
200-230V

Output
3-Phase
200-230V

Dimensions
Height: 18.50 in
Width: 9.84 in
Depth: 10.63 in

Enclosure
IP00

Standard Features

  • High torque at low speeds. Magnetic flux vector control provides up to 200-300% starting torque.
  • Line regenerative converter. Integrated design reduces panel space requirements by 60-80% over separate components.
  • Continuous braking power. Enables 100% continuous regeneration and provides 150% overload for 60 seconds.
  • Tripless operation. Selectable stall prevention function protects against overcurrent tripping.
  • Quiet operation. Intelligent power module (IPM) incorporates IGBT transistor technology for quiet motor operation.
  • Optional easy-to-use parameter unit. Parameter units are used for operator control, reading and writing parameters, and drive monitoring.
  • High functionality. Software configuration with many adjustable parameters allows tailoring the drive to a wide variety of applications.
