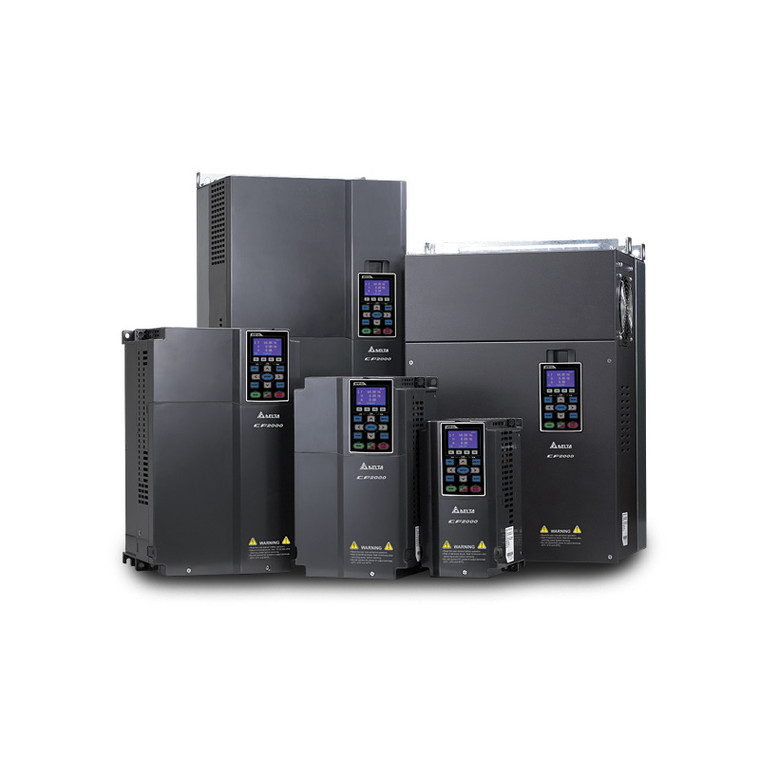

60HP 230V Delta CP2000 VFD, Inverter, AC Drive VFD550CP23A-21

Brand: Delta
Model: VFD550CP23A-21
Condition: New Surplus
Rating:
0% of 100

In stock
$3,763.00

Highlights

  • LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
  • Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
  • Modular design for flexible extension and easy maintenance
  • High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP and CANopen
  • Extended life cycle
  • Enhanced conformal coating on PCBs for superior durability in critical environments
  • Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
  • Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
  • Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control
  • Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Rated Input Frequency 60 Hz
Constant Torque / Variable Torque Variable Torque
Series CP2000
Phase Three Phase
Rated Amps 180 A
Enclosure Rating IP 00
Frame Size E2
Brand Delta
Horsepower Rating 60 HP
Rated Voltage 230 V
Product Condition New Surplus
Output Voltage 230 V
Output Amperage Rating 180 A
HP Rating @ 150% OL 60 HP
Amp Rating @ 150% OL 180 A
Model VFD550CP23A-21
Height 28.18 in
Width 14.57 in
Depth 11.81 in
Product Information

Delta CP2000 Series

Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.

Highlights

  • LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
  • Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
  • Modular design for flexible extension and easy maintenance
  • High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP and CANopen
  • Extended life cycle
  • Enhanced conformal coating on PCBs for superior durability in critical environments
  • Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
  • Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
  • Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control
  • Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)
