30HP at 460V, 15HP at 230V, WEG Soft Starter, SSW070045T5SZ
Brand: WEG
Model: SSW070045T5SZ
Condition: New
Kit Includes:
Highlights
- Strong reduction on mechanical stresses over the coupling and transmission devices (gearboxes, pulleys, gears, conveyors, etc.) during the start
- Eliminates mechanical shock
- Increases motor and machine mechanical equipment lifetime due to the elimination of mechanical shock
- Easy operation, setup, maintenance and installation
- Simple electric installation
- Operates in environments up to 55°C (without current reduction for all models)
- Integral, electronic motor protection
- Built-in electronic thermal relay
- Avoids the “Water Hammer” in pumps
- Limitation of voltage drop during start
- Universal voltage (220 to 575 Vac)
- Switched type power supply with EMC filter for the control electronics (110 to 240 Vac)
- Voltage monitoring of the electronics to back-up lxt values (thermal image)
Technical Specifications
| Bypass | bypass |
|---|---|
| Phase | Three Phase |
| Enclosure Rating | IP 20 |
| Brand | WEG |
| Product Condition | New |
| Rated Amps | 45 A |
| Model | SSW070045T5SZ |
| Height | 8.2 in |
| Width | 5.57 in |
| Depth | 7.94 in |
Product Information

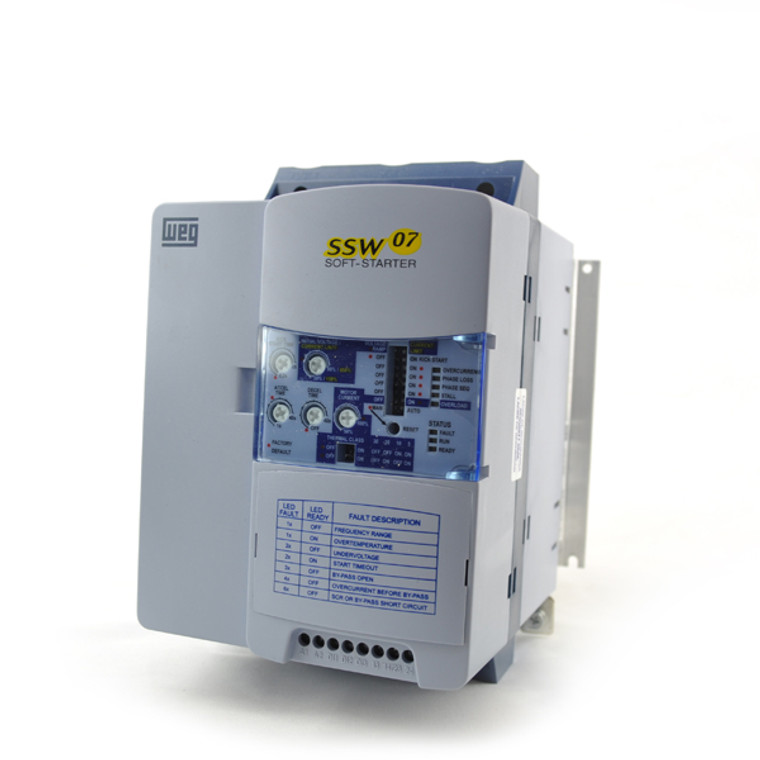

WEG WEG SSW07 Series Soft Starter
Soft Starters are static starting switches, designed for the acceleration, deceleration and protection of the three phase, electric induction motor through the control of the voltage applied to the motor. The SSW07, with DSP control (Digital Signal Processor), was designed to provide great performance at motor starts and stops with excellent cost-benefit relation. Easy to set up, it simplifies start-up activities and daily operation. The SSW07 is compact, contributing to optimized space in electric panels. The SSW07 incorporates all electric motor protections and adapts to customer needs through its easy-to-install optional accessories. Thus, a keypad, a communication interface or a motor PTC input can be added to the product.
Highlights
- Strong reduction on mechanical stresses over the coupling and transmission devices (gearboxes, pulleys, gears, conveyors, etc.) during the start
- Eliminates mechanical shock
- Increases motor and machine mechanical equipment lifetime due to the elimination of mechanical shock
- Easy operation, setup, maintenance and installation
- Simple electric installation
- Operates in environments up to 55°C (without current reduction for all models)
- Integral, electronic motor protection
- Built-in electronic thermal relay
- Avoids the “Water Hammer” in pumps
- Limitation of voltage drop during start
- Universal voltage (220 to 575 Vac)
- Switched type power supply with EMC filter for the control electronics (110 to 240 Vac)
- Voltage monitoring of the electronics to back-up lxt values (thermal image)
