20HP 460V Delta MS300 VFD, Inverter, AC Drive VFD32AMS43AFSAA

Brand: Delta
Model: VFD32AMS43AFSAA
Condition: New
Rating:
0% of 100

In stock
List Price $1,201.00 Online Price $600.50

Highlights

  • Supports Open loop control of IM and PM motors
  • Output frequency:
  • Standard models: 0 to 599 Hz
  • High speed models: 0 to 1500 Hz (V/f Control)
  • Dual rating design:
  • 120% for 60 seconds for Normal Duty (ND)
  • 150% for 60 seconds for Heavy Duty (HD)
  • Built-in PLC program with 2K steps capacity
  • Built-in brake choppers for the entire series
  • Removable 5-digit LED keypad for remote operation
  • Safety standard compliance: Safe Torque Off (SIL2/PLd)
  • Multi-motor Control?built-in four IM motor control parameters
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
  • One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
  • One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP,
  • DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT
Compare with similar items

Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Rated Input Frequency 60 Hz
Constant Torque / Variable Torque Variable Torque/Constant Torque
Series MS300
Rated Amps 32 A, 36 A
Enclosure Rating IP 20
Frame Size E2
Brand Delta
Horsepower Rating 20 HP
Rated Voltage 460 V
Product Condition New
Output Voltage 460 V
Output Amperage Rating 32 A
Amp Rating @ 120% OL 36 A
Amp Rating @ 150% OL 32 A
Model VFD32AMS43AFSAA
Height 9.84 in
Width 5.12 in
Depth 8.62 in
Warranty 2 Year
Product Information

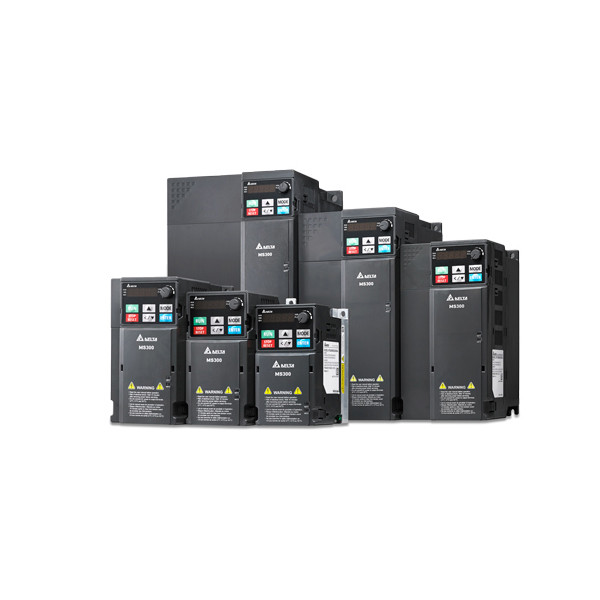

Delta MS300 Series

Delta's MS300 series is a standard compact vector control drive that inherits Delta's superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system - all included in the MS300 series with drive size reduced up to 40%.

Highlights

  • Supports Open loop control of IM and PM motors
  • Output frequency:
  • Standard models: 0 to 599 Hz
  • High speed models: 0 to 1500 Hz (V/f Control)
  • Dual rating design:
  • 120% for 60 seconds for Normal Duty (ND)
  • 150% for 60 seconds for Heavy Duty (HD)
  • Built-in PLC program with 2K steps capacity
  • Built-in brake choppers for the entire series
  • Removable 5-digit LED keypad for remote operation
  • Safety standard compliance: Safe Torque Off (SIL2/PLd)
  • Multi-motor Control?built-in four IM motor control parameters
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
  • One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
  • One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP,
  • DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT
