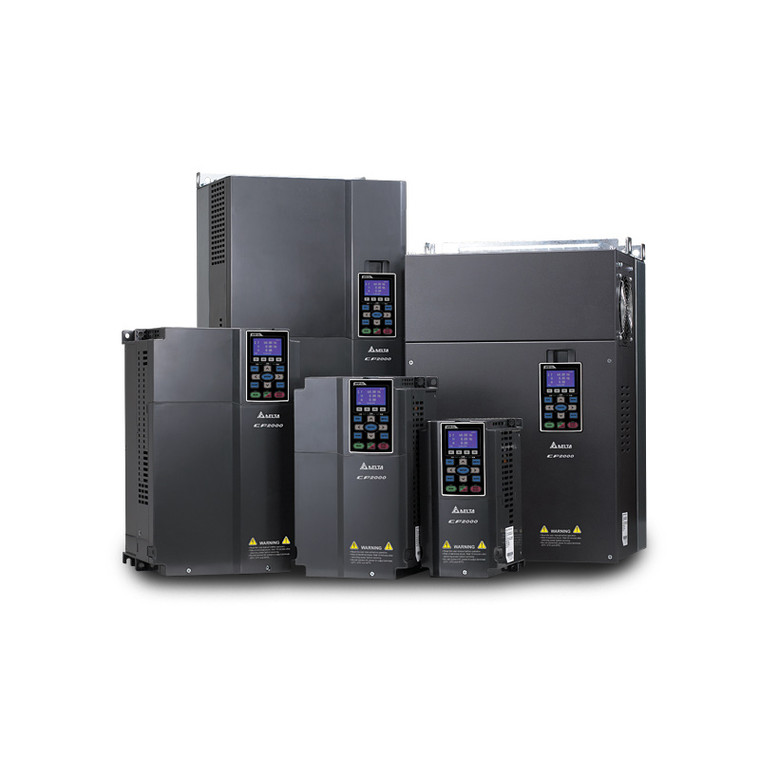

15HP 460V Delta CP2000 VFD, Inverter, AC Drive VFD110CP4EB-21
Brand: Delta
Model: VFD110CP4EB-21
Condition: New
Kit Includes:
Highlights
- LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
- Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
- Modular design for flexible extension and easy maintenance
- High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP and CANopen
- Extended life cycle
- Enhanced conformal coating on PCBs for superior durability in critical environments
- Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
- Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
- Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control
- Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)
Compare with similar items
This Item
|
|
|
|
|
|
|
| 15HP 460V Delta CP2000 VFD, Inverter, AC Drive VFD110CP4EB-21 | 15HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00260UL-02 | 10HP & 15HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00250UL-01 | 15HP 460V Delta MS300 VFD, Inverter, AC Drive VFD25AMS43AFSAA | 15HP 460V Saftronics VFD, Inverter, AC Drive CV104015-9 | 15HP 460V Mitsubishi F800E VFD, Inverter, AC Drive FR-F840-00250-E3N6 | |
| Ratings | ||||||
| Price |
List Price
$1,325.00
Online Price
$662.50
|
$677.00
|
$711.00
|
List Price
$1,011.00
Online Price
$505.50
|
$699.99
|
List Price
$1,955.00
Online Price
$1,466.25
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
CP2000
|
G200
|
G300
|
MS300
|
CV10
|
F800E
|
| Rated Amps |
24 A
|
32 A
|
18.5 A, 25 A
|
25 A, 28 A
|
25 A
|
23 A, 25 A
|
| Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
UL Type 1
|
| Frame Size |
B
|
|
|
E2
|
|
D
|
| Brand |
Delta
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Delta
|
Saftronics
|
MITSUBISHI
|
| Horsepower Rating |
15 HP
|
15 HP
|
10 HP, 15 HP
|
15 HP
|
15 HP
|
15 HP
|
| Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
| Model |
VFD110CP4EB-21
|
G24000260UL02
|
G340-00250UL-01
|
VFD25AMS43AFSAA
|
CV104015-9
|
FR-F840-00250-E3N6
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Rated Input Frequency | 60 Hz |
| Constant Torque / Variable Torque | Variable Torque |
| Series | CP2000 |
| Phase | Three Phase |
| Rated Amps | 24 A |
| Enclosure Rating | IP 20 |
| Frame Size | B |
| Brand | Delta |
| Horsepower Rating | 15 HP |
| Rated Voltage | 460 V |
| Product Condition | New |
| Output Voltage | 460 V |
| Output Amperage Rating | 24 A |
| HP Rating @ 120% OL | 15 HP |
| Amp Rating @ 120% OL | 24 A |
| Model | VFD110CP4EB-21 |
| Height | 12.6 in |
| Width | 7.48 in |
| Depth | 7.48 in |
| Warranty | 2 Year |
Product Information
Delta CP2000 Series
Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.
Highlights
- LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
- Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
- Modular design for flexible extension and easy maintenance
- High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP and CANopen
- Extended life cycle
- Enhanced conformal coating on PCBs for superior durability in critical environments
- Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
- Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
- Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control
- Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)
