ACL45-0052 Reactor, 480V, 5%, 40HP, 52A, 0.75mH (ACL45-0052)
- Weight:
- 39.60 LBS

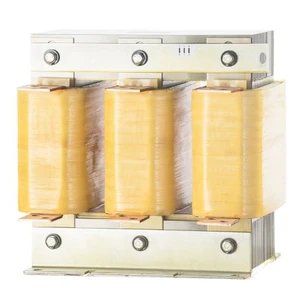

MANGOLDT’S Line Reactors set a new standard for line reactor performance and reliability. Precise 3-phase inductance and voltage drops, minimized stray flux, reduced losses due to harmonics, as well as low noise operation. Line Reactors from MANGOLDT are designed to suit both - line input or load output of drive systems. With the added impedance they provide you an easy solution for reducing nuisance tripping and harmonic distortion as well as minimizing long lead effects.
-
-
ACL65-0034 Reactor, 600V 5%, 30HP, 34A, 1.4mH (ACL65-0034)
- Weight:
- 33.00 LBS
-
ACL43-0035 Reactor, 480V, 3%, 25HP, 35A, 0.70mH (ACL43-0035)
- Weight:
- 20.46 LBS
-
ACL43-0028 Reactor, 480V, 3%, 20HP, 28A, 0.86mH (ACL43-0028)
- Weight:
- 16.94 LBS
-
ACL65-0041 Reactor, 600V, 5%, 40HP, 41A, 1.19mH (ACL65-0041)
- Weight:
- 37.40 LBS
-
ACL65-0027 Reactor, 600V, 5%, 25HP, 27A, 1.8mH (ACL65-0027)
- Weight:
- 28.60 LBS
-
ACL45-0008 Reactor, 480V, 5%, 5HP, 8A, 4.90mH (ACL45-0008)
- Weight:
- 11.44 LBS
-
ACL65-0244 Reactor, 600V, 5%, 250HP, 244A, 0.2mH (ACL65-0244)
- Weight:
- 107.80 LBS
-
ACL65-0052 Reactor, 600V, 5%, 50HP, 52A, 0.95mH (ACL65-0052)
- Weight:
- 41.80 LBS
-
ACL43-0125 Reactor, 480V, 3%, 100HP, 125A, 0.19mH (ACL43-0125)
- Weight:
- 44.00 LBS
-
ACL65-0014 Reactor, 600V, 5%, 10HP, 14A, 3.50mH (ACL65-0014)
- Weight:
- 0.01 LBS
-
ACL65-0081 Reactor, 600V, 5%, 75HP, 81A, 0.61mH (ACL65-0081)
- Weight:
- 61.60 LBS
