Mangoldt Reactor 600 V, 5%, 5 HP, 6 A, 8.0 mH (ACL65-0006)
- Weight:
- 9.02 LBS
Load reactors (or output reactors) are placed between the VFD and motor, protecting motor windings from voltage spikes, smoothing current waveforms, and minimizing the damaging effects of IGBT switching.
-
-
Mangoldt Reactor 600 V, 5%, 2 HP, 3 A, 16.5 mH (ACL65-0003)
- Weight:
- 9.02 LBS
-
Mangoldt Reactor 600 V, 5%, 350 HP, 339 A, 0.145 mH (ACL65-0339)
- Weight:
- 190.00 LBS
-
Mangoldt Reactor 480 V, 3%, 350 HP, 415 A, 0.058 mH (ACL43-0415)
- Weight:
- 150.00 LBS
-
Mangoldt Reactor 600 V, 5%, 450 HP, 424 A, 0.115 mH (ACL65-0424)
- Weight:
- 242.00 LBS
-
Mangoldt Reactor 480 V, 5%, 700 HP, 848 A, 0.046 mH (ACL45-0848)
- Weight:
- 275.00 LBS
-
Mangoldt Reactor 480 V, 3%, 450 HP, 515 A, 0.047 mH (ACL43-0515)
- Weight:
- 143.00 LBS
-
-
Mangoldt Reactor 600 V, 3%, 200 HP, 198 A, 0.15 mH (ACL63-0198)
- Weight:
- 118.00 LBS
-
Mangoldt Reactor 600 V, 3%, 150 HP, 144 A, 0.21 mH (ACL63-0144)
- Weight:
- 63.00 LBS
-
Mangoldt Reactor 600 V, 3%, 125 HP, 131 A, 0.23 mH (ACL63-0131)
- Weight:
- 63.00 LBS
-

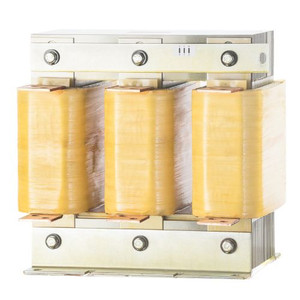

Mangoldt Reactor 600 V, 5%, 1000 HP, 975 A, 0.050 mH (ACL65-0975)
- Weight:
- 385.00 LBS
