Mangoldt Reactor 600 V, 5% Z, 75 HP, 84 A, 0.58 mH (ACK65-0084)
- Weight:
- 48.30 LBS
Load reactors (or output reactors) are placed between the VFD and motor, protecting motor windings from voltage spikes, smoothing current waveforms, and minimizing the damaging effects of IGBT switching.
-
-
Mangoldt Reactor 600 V, 5% Z, 50 HP, 53 A, 0.92 mH (ACK65-0053)
- Weight:
- 35.10 LBS
-
Mangoldt Reactor 600 V, 5% Z, 40 HP, 43 A, 1.14 mH (ACK65-0043)
- Weight:
- 32.20 LBS
-
Mangoldt Reactor 480 V, 5% Z, 100 HP, 125 A, 0.31 mH (ACK45-0125)
- Weight:
- 52.10 LBS
-
Mangoldt Reactor 480 V, 5% Z, 60 HP, 80 A, 0.49 mH (ACK45-0080)
- Weight:
- 38.90 LBS
-
Mangoldt Reactor 480 V, 5% Z, 40 HP, 52 A, 0.75 mH (ACK45-0052)
- Weight:
- 32.20 LBS
-
Mangoldt Reactor 480 V, 5%, 150 HP, 185 A, 0.210 mH (ACL45-0185)
- Weight:
- 90.20 LBS
-
Mangoldt Reactor 480 V, 5%, 125 HP, 159 A, 0.245 mH (ACL45-0159)
- Weight:
- 77.00 LBS
-
Mangoldt Reactor 480 V, 3%, 200 HP, 242 A, 0.10 mH (ACL43-0242)
- Weight:
- 79.64 LBS
-
Mangoldt Reactor 480 V, 5%, 100 HP, 129 A, 0.30 mH (ACL45-0129)
- Weight:
- 67.10 LBS
-
Mangoldt Reactor 480 V, 5% Z, 75 HP, 100 A, 0.39 mH (ACK45-0100)
- Weight:
- 42.20 LBS
-

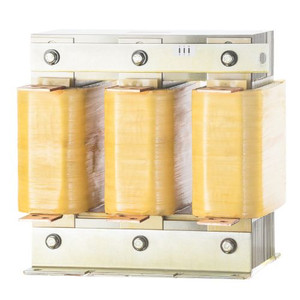

Mangoldt Reactor 480 V, 5%, 250 HP, 302 A, 0.130 mH (ACL45-0302)
- Weight:
- 112.20 LBS
