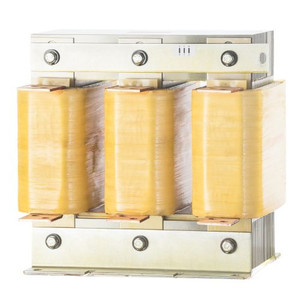

Mangoldt Reactor 600 V, 5%, 200 HP, 192 A, 0.25 mH (ACL65-0192)
- Weight:
- 130.00 LBS
Load reactors (or output reactors) are placed between the VFD and motor, protecting motor windings from voltage spikes, smoothing current waveforms, and minimizing the damaging effects of IGBT switching.
-
-
Mangoldt Reactor 600 V, 5%, 50 HP, 52 A, 0.95 mH (ACL65-0052)
- Weight:
- 39.00 LBS
-
Mangoldt Reactor 480 V, 5%, 200 HP, 243 A, 0.159 mH (ACL45-0243)
- Weight:
- 97.00 LBS
-
Mangoldt Reactor 480 V, 3%, 20 HP, 28 A, 0.86 mH (ACL43-0028)
- Weight:
- 17.00 LBS
-
Mangoldt Reactor 480 V, 3% Z, 100 HP, 125 A, 0.19 mH (ACK43-0125)
- Weight:
- 39.50 LBS
-
Mangoldt Reactor 480 V, 3% Z, 75 HP, 100 A, 0.24 mH (ACK43-0100)
- Weight:
- 34.90 LBS
-
Mangoldt Reactor 480 V, 3% Z, 60 HP, 80 A, 0.3 mH (ACK43-0080)
- Weight:
- 32.00 LBS
-
Mangoldt Reactor 600 V, 5% Z, 100 HP, 105 A, 0.47 mH (ACK65-0105)
- Weight:
- 54.00 LBS
-
Mangoldt Reactor 600 V, 5% Z, 75 HP, 84 A, 0.58 mH (ACK65-0084)
- Weight:
- 48.30 LBS
-
Mangoldt Reactor 480 V, 5% Z, 100 HP, 125 A, 0.31 mH (ACK45-0125)
- Weight:
- 52.10 LBS
-
Mangoldt Reactor 480 V, 5% Z, 60 HP, 80 A, 0.49 mH (ACK45-0080)
- Weight:
- 38.90 LBS
-
Mangoldt Reactor 480 V, 5% Z, 40 HP, 52 A, 0.75 mH (ACK45-0052)
- Weight:
- 32.20 LBS
