Mangoldt Reactor 480 V, 3% Z, 40 HP, 52 A, 0.47 mH (ACK43-0052)
- Weight:
- 20.60 LBS
Load reactors (or output reactors) are placed between the VFD and motor, protecting motor windings from voltage spikes, smoothing current waveforms, and minimizing the damaging effects of IGBT switching.
-
-
Mangoldt Reactor 480 V, 3% Z, 30 HP, 43 A, 0.56 mH (ACK43-0043)
- Weight:
- 16.40 LBS
-
Mangoldt Reactor 480 V, 3% Z, 20 HP, 28 A, 0.87 mH (ACK43-0028)
- Weight:
- 12.40 LBS
-
Mangoldt Reactor 480 V, 3% Z, 25 HP, 35 A, 0.69 mH (ACK43-0035)
- Weight:
- 15.00 LBS
-
Mangoldt Reactor 480 V, 3% Z, 15 HP, 22 A, 1.1 mH (ACK43-0022)
- Weight:
- 11.10 LBS
-
Mangoldt Reactor 480 V, 3% Z, 10 HP, 16 A, 1.5 mH (ACK43-0016)
- Weight:
- 7.50 LBS
-

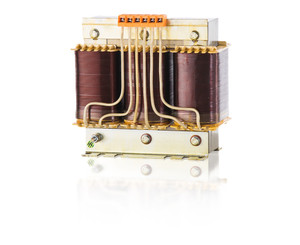

Mangoldt Reactor 480 V, 3% Z, 7.5 HP, 11 A, 2.2 mH (ACK43-0011)
- Weight:
- 5.80 LBS
-
Mangoldt Reactor 480 V, 3% Z, 5 HP, 8 A, 3 mH (ACK43-0008)
- Weight:
- 4.50 LBS
-
Mangoldt Reactor 480 V, 3% Z, 3 HP, 5 A, 4.9 mH (ACK43-0005)
- Weight:
- 3.40 LBS
-
Mangoldt Reactor 480 V, 3% Z, 1.5 HP, 3 A, 8.1 mH (ACK43-0003)
- Weight:
- 2.90 LBS
-
Mangoldt Reactor 600 V, 5% Z, 30 HP, 35 A, 1.4 mH (ACK65-0035)
- Weight:
- 26.10 LBS
-
Mangoldt Reactor 600 V, 5% Z, 25 HP, 28 A, 1.75 mH (ACK65-0028)
- Weight:
- 21.70 LBS
