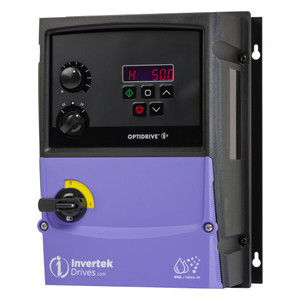

Invertek Optidrive E3 Series Inverter/VFD
Focused on ease of use, Optidrive E3 provides unrivalled simplicity of installation, connection and commissioning, allowing the user to benefit from precise motor control and energy savings within minutes.
Key Features
Internal Category C1 EMC filter
Internal PI control
Internal brake chopper
Dual analogue inputs
Operates up to 50°C
Bluetooth connectivity
Option for control of single phase motors
Series: OptiDrive E3
Model: ODE-3-320153-1F4A-MTP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 5 HP
Rated Amps: 15.3 A
Rated Voltage: 240 V
Rated Input Frequency: 60 Hz
Output Voltage: 240 V
Output Amperage Rating: 15.3 A
Phase Rating: 1 Phase Input - 3 Phase Output
Phase: Single Phase
Enclosure Rating: IP 66
Frame Size: 3
Weight: 14.60 LBS
Out Of Stock
List Price:
$2,440.00
Online Price:
$1,171.20
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-320153-1F4A-EIP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 5 HP
Rated Amps: 15.3 A
Rated Voltage: 240 V
Rated Input Frequency: 60 Hz
Output Voltage: 240 V
Output Amperage Rating: 15.3 A
Phase Rating: 1 Phase Input - 3 Phase Output
Phase: Single Phase
Enclosure Rating: IP 66
Frame Size: 3
Weight: 14.60 LBS
Out Of Stock
List Price:
$2,440.00
Online Price:
$1,171.20
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240095-3F4B-MTP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 5 HP
Rated Amps: 9.5 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 9.5 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$2,300.00
Online Price:
$1,104.00
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240095-3F4B-EIP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 5 HP
Rated Amps: 9.5 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 9.5 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$2,300.00
Online Price:
$1,104.00
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240095-3F4A-MTP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 5 HP
Rated Amps: 9.5 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 9.5 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$1,945.00
Online Price:
$933.60
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240095-3F4A-EIP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 5 HP
Rated Amps: 9.5 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 9.5 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$1,945.00
Online Price:
$933.60
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240058-3F4B-MTP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 3 HP
Rated Amps: 5.8 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 5.8 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$2,080.00
Online Price:
$998.40
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240058-3F4B-EIP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 3 HP
Rated Amps: 5.8 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 5.8 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$2,080.00
Online Price:
$998.40
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240058-3F4A-MTP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 3 HP
Rated Amps: 5.8 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 5.8 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$1,815.00
Online Price:
$871.20
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240058-3F4A-EIP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 3 HP
Rated Amps: 5.8 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 5.8 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$1,815.00
Online Price:
$871.20
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240041-3F4B-MTP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 2 HP
Rated Amps: 4.1 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 4.1 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$1,950.00
Online Price:
$936.00
VIEW DETAILS
Add to Compare
Series: OptiDrive E3
Model: ODE-3-240041-3F4B-EIP
Brand: INVERTEK
Product Condition: New
Warranty: 2 Year
Horsepower Rating: 2 HP
Rated Amps: 4.1 A
Rated Voltage: 480 V
Rated Input Frequency: 60 Hz
Output Voltage: 480 V
Output Amperage Rating: 4.1 A
Phase Rating: 3 Phase Input - 3 Phase Output
Phase: Three Phase
Enclosure Rating: IP 66
Frame Size: 2
Weight: 7.70 LBS
Out Of Stock
List Price:
$1,950.00
Online Price:
$936.00
VIEW DETAILS
