Hostile Duty

Hostile Duty Motors

APPLICATIONS:

For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring protection within harsh operating conditions.


  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H15P2D, 15 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 254T (H15P2D)

    US Motors (Nidec), AC Motor, H15P2D, 15 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 254T (H15P2D)

    • Model:
      DT55
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.4
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.25
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      92.4%
    • Construction:
      Cast Iron
    • C Dimension:
      25.2
    • Bearing Type:
      6309-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      40-36/18.2 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H7P3D, 7.5 HP, 1200 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 254T (H7P3D)

    US Motors (Nidec), AC Motor, H7P3D, 7.5 HP, 1200 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 254T (H7P3D)

    • Model:
      DE14
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1200 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      33.3
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      25.2
    • Bearing Type:
      6309-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      20.6-18.8/9.4 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H1P2D, 1 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 143T (H1P2D)

    US Motors (Nidec), AC Motor, H1P2D, 1 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 143T (H1P2D)

    • Model:
      FD36
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      1 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      143T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      3
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      85.5%
    • Construction:
      Cast Iron
    • C Dimension:
      12.9
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      3.1-3/1.5 A
    • Weight:
      65.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H5P2D, 5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184T (H5P2D)

    US Motors (Nidec), AC Motor, H5P2D, 5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184T (H5P2D)

    • Model:
      DG89
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      5 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      184T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      14.9
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      89.5%
    • Construction:
      Cast Iron
    • C Dimension:
      16
    • Bearing Type:
      6206-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      13.9-12.8/6.4 A
    • Weight:
      100.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H7P1D, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213T (H7P1D)

    US Motors (Nidec), AC Motor, H7P1D, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213T (H7P1D)

    • Model:
      DP54
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      213T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      11.2
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • Construction:
      Cast Iron
    • C Dimension:
      19.1
    • Bearing Type:
      6208-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      19.9-17.8/8.9 A
    • Weight:
      160.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H25P1D, 25 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 284T (H25P1D)

    US Motors (Nidec), AC Motor, H25P1D, 25 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 284T (H25P1D)

    • Model:
      DL32
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      25 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      284T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      36.9
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      27
    • Bearing Type:
      6310-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      66-57/28.7 A
    • Weight:
      355.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H3P2D, 3 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182T (H3P2D)

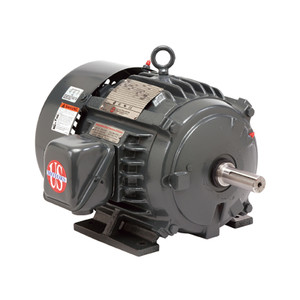

    US Motors (Nidec), AC Motor, H3P2D, 3 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 182T (H3P2D)

    • Model:
      DG87
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      3 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      182T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      8.9
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      89.5%
    • Construction:
      Cast Iron
    • C Dimension:
      15.5
    • Bearing Type:
      6206-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      8.4-7.8/3.9 A
    • Weight:
      100.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H75P1ES, 75 HP, 3600 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 365TS (H75P1ES)

    US Motors (Nidec), AC Motor, H75P1ES, 75 HP, 3600 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 365TS (H75P1ES)

    • Model:
      DM25
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      75 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      365TS
    • Rated Supply Voltage:
      230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      A
    • Full Load Torque:
      110.4
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93.6%
    • Construction:
      Cast Iron
    • C Dimension:
      30.4
    • Bearing Type:
      6313-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      167/84 A
    • Weight:
      875.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H40P2E, 40 HP, 1800 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 324T (H40P2E)

    US Motors (Nidec), AC Motor, H40P2E, 40 HP, 1800 RPM, Three Phase, 230/460 & 190/380 V, 60 , 50 Hz, 324T (H40P2E)

    • Model:
      DL67
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      40 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      324T
    • Rated Supply Voltage:
      230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      118.1
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      94.1%
    • Construction:
      Cast Iron
    • C Dimension:
      30.5
    • Bearing Type:
      6311-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      90/45 A
    • Weight:
      510.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, H30P1D, 30 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 286T (H30P1D)

    US Motors (Nidec), AC Motor, H30P1D, 30 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 286T (H30P1D)

    • Model:
      DK32
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      30 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      286T
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.3
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • Construction:
      Cast Iron
    • C Dimension:
      27
    • Bearing Type:
      6310-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      79-69/34 A
    • Weight:
      400.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
