Hollow Shaft

Hollow Shaft

APPLICATIONS:

For use on turbine, mix flow and propeller pumps.

FEATURES:

  • Class F Insulation
  • 1.15 Service Factor
  • Maximum 40°C Ambient, 3,300 Feet Altitude
  • Capacitor Start Design
  • Corrosion Resistant Mill & Chemical Duty Paint
  • NRR = Non-Reverse Ratchet
  • Discount Symbol: DS-7VS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO20P2BLF, 20 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 256TPH (HO20P2BLF)

    US Motors (Nidec), AC Motor, HO20P2BLF, 20 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 256TPH (HO20P2BLF)

    • Model:
      HO20P2BLF
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      20 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1775 RPM
    • Frame Size:
      256TPH
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      59.2
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      48/24 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO20P1BLF, 20 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 254TPH (HO20P1BLF)

    US Motors (Nidec), AC Motor, HO20P1BLF, 20 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 254TPH (HO20P1BLF)

    • Model:
      HO20P1BLF
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      20 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3540 RPM
    • Frame Size:
      254TPH
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      29.7
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      26.7
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      47/23.7 A
    • Weight:
      265.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO200V2SLHX, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, H445TPA (HO200V2SLHX)

    US Motors (Nidec), AC Motor, HO200V2SLHX, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, H445TPA (HO200V2SLHX)

    • Model:
      HO200V2SLHX
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      H445TPA
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      589.8
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • C Dimension:
      50
    • Bearing Type:
      6215-J
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      222 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

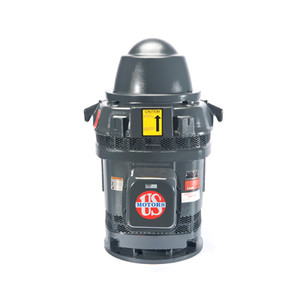

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO200V2GLG, 200 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, H445TP (HO200V2GLG)

    US Motors (Nidec), AC Motor, HO200V2GLG, 200 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, H445TP (HO200V2GLG)

    • Model:
      HO200V2GLG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      H445TP
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      590.3
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • C Dimension:
      50
    • Bearing Type:
      6215-J
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      177 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO200P2SLHX, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, H445TPA (HO200P2SLHX)

    US Motors (Nidec), AC Motor, HO200P2SLHX, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, H445TPA (HO200P2SLHX)

    • Model:
      HO200P2SLHX
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      H445TPA
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      589.8
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • C Dimension:
      50
    • Bearing Type:
      6215-J
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      222 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO200P2SLG, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, H445TP (HO200P2SLG)

    US Motors (Nidec), AC Motor, HO200P2SLG, 200 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, H445TP (HO200P2SLG)

    • Model:
      HO200P2SLG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      H445TP
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      589.7
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • C Dimension:
      50
    • Bearing Type:
      6215-J
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      222 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO200P2RLG, 200 HP, 1800 RPM, Three Phase, 00209 V, 60 Hz, H445TP (HO200P2RLG)

    US Motors (Nidec), AC Motor, HO200P2RLG, 200 HP, 1800 RPM, Three Phase, 00209 V, 60 Hz, H445TP (HO200P2RLG)

    • Model:
      HO200P2RLG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      200 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      H445TP
    • Rated Supply Voltage:
      00209 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      589.8
    • Rated Voltage:
      209 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      50
    • Bearing Type:
      6215-J
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      468/271-234 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO15V2GLE, 15 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 254TP (HO15V2GLE)

    US Motors (Nidec), AC Motor, HO15V2GLE, 15 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 254TP (HO15V2GLE)

    • Model:
      HO15V2GLE
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1775 RPM
    • Frame Size:
      254TP
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • C Dimension:
      26.7
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      14.3 A
    • Weight:
      265.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO15V2BLE, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TP (HO15V2BLE)

    US Motors (Nidec), AC Motor, HO15V2BLE, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TP (HO15V2BLE)

    • Model:
      HO15V2BLE
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      254TP
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93.6%
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      36/18 A
    • Weight:
      265.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO15P3BLF, 15 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 284TPA (HO15P3BLF)

    US Motors (Nidec), AC Motor, HO15P3BLF, 15 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 284TPA (HO15P3BLF)

    • Model:
      HO15P3BLF
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1180 RPM
    • Frame Size:
      284TPA
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      66.8
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • C Dimension:
      28.1
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      38/19.1 A
    • Weight:
      305.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO15P2BLG, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TPA (HO15P2BLG)

    US Motors (Nidec), AC Motor, HO15P2BLG, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TPA (HO15P2BLG)

    • Model:
      HO15P2BLG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      254TPA
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      36/17.8 A
    • Weight:
      265.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, HO15P2BLE, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TP (HO15P2BLE)

    US Motors (Nidec), AC Motor, HO15P2BLE, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254TP (HO15P2BLE)

    • Model:
      HO15P2BLE
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      254TP
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Weather Protected I (WP1)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • Bearing Type:
      6210-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      36/17.8 A
    • Weight:
      265.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
