Corro-Duty

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC15P1B, 15 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 254T (YC15P1B)

    US Motors (Nidec), AC Motor, YC15P1B, 15 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 254T (YC15P1B)

    • Model:
      YC15P1B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3540 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.2
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      25
    • Bearing Type:
      6207-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      35/17.5 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC10P4B, 10 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 284T (YC10P4B)

    US Motors (Nidec), AC Motor, YC10P4B, 10 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 284T (YC10P4B)

    • Model:
      YC10P4B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      10 HP
    • Synchronous RPM:
      900 RPM
    • Rated RPM:
      885 RPM
    • Frame Size:
      284T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      59.5
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      89.5%
    • C Dimension:
      27.6
    • Bearing Type:
      6210-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      28/14 A
    • Weight:
      390.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC10P3B, 10 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC10P3B)

    US Motors (Nidec), AC Motor, YC10P3B, 10 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC10P3B)

    • Model:
      YC10P3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      10 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1180 RPM
    • Frame Size:
      256T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.5
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      25
    • Bearing Type:
      6207-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      24.8/12.4 A
    • Weight:
      375.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC10P2B, 10 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 215T (YC10P2B)

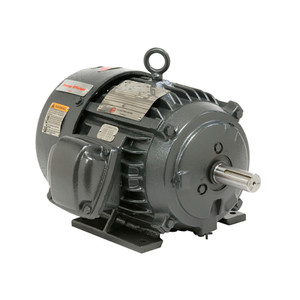

    US Motors (Nidec), AC Motor, YC10P2B, 10 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 215T (YC10P2B)

    • Model:
      YC10P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      10 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1760 RPM
    • Frame Size:
      215T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      29.8
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • C Dimension:
      20
    • Bearing Type:
      6206-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      23.9 A
    • Weight:
      170.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC10P1B, 10 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 215T (YC10P1B)

    US Motors (Nidec), AC Motor, YC10P1B, 10 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 215T (YC10P1B)

    • Model:
      YC10P1B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      10 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3500 RPM
    • Frame Size:
      215T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      15
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      90.2%
    • C Dimension:
      20
    • Bearing Type:
      6206-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      23.6/11.8 A
    • Weight:
      170.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC100P2B, 100 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 405T (YC100P2B)

    US Motors (Nidec), AC Motor, YC100P2B, 100 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 405T (YC100P2B)

    • Model:
      YC100P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      100 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1780 RPM
    • Frame Size:
      405T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      294.7
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • C Dimension:
      13.7
    • Bearing Type:
      6214-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      225/113 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, Y34S2B, 0.75 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 56 (Y34S2B)

    US Motors (Nidec), AC Motor, Y34S2B, 0.75 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 56 (Y34S2B)

    • Model:
      Y34S2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.75 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1745 RPM
    • Frame Size:
      56
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      2.2
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      78.5%
    • C Dimension:
      11.6
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      2.7/1.3 A
    • Weight:
      49.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, Y12S2B, 0.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 56 (Y12S2B)

    US Motors (Nidec), AC Motor, Y12S2B, 0.5 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 56 (Y12S2B)

    • Model:
      Y12S2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      0.5 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1745 RPM
    • Frame Size:
      56
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1.5
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      77%
    • C Dimension:
      11.6
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      1.8-1.7/0.9 A
    • Weight:
      47.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT7P2DE, 7.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213HP (CNT7P2DE)

    • Model:
      CNT7P2DE
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      213HP
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • C Dimension:
      22.4
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      20.1-18.6/9.3 A
    • Weight:
      220.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT7P1DE, 7.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213HP (CNT7P1DE)

    • Model:
      CNT7P1DE
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      7.5 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      213HP
    • Rated Supply Voltage:
      208-230/460 & 190/380 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      11.2
    • Rated Voltage:
      208 V
    • Rated Voltage:
      230 V
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      22.4
    • Bearing Type:
      6208-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      19.9-17.8/8.9 A
    • Weight:
      220.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT75P2FG, 75 HP, 1800 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 365HP (CNT75P2FG)

    • Model:
      CNT75P2FG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      75 HP
    • Synchronous RPM:
      1800 RPM
    • Frame Size:
      365HP
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      221
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • C Dimension:
      34
    • Bearing Type:
      6313-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      84 A
    • Weight:
      940.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo Image coming soon

    US Motors (Nidec), AC Motor, CNT75P1FG, 75 HP, 3600 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 365HP (CNT75P1FG)

    • Model:
      CNT75P1FG
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Vertical
    • Horsepower Rating:
      75 HP
    • Synchronous RPM:
      3600 RPM
    • Frame Size:
      365HP
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      110.4
    • Rated Voltage:
      380 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93.6%
    • C Dimension:
      34
    • Bearing Type:
      6313-J/C3
    • Rated Input Frequency:
      60 Hz
    • Rated Input Frequency:
      50 Hz
    • Motor Full Load Amps:
      83 A
    • Weight:
      940.00 LBS
    Out Of Stock
    Adding to cart… The item has been added
    VIEW DETAILS
