Corro-Duty

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC25P3B, 25 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 324T (YC25P3B)

    US Motors (Nidec), AC Motor, YC25P3B, 25 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 324T (YC25P3B)

    • Model:
      YC25P3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      25 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      324T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      110.4
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • C Dimension:
      30.6
    • Bearing Type:
      6211-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      61/31 A
    • Weight:
      575.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC25P2B, 25 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 284T (YC25P2B)

    US Motors (Nidec), AC Motor, YC25P2B, 25 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 284T (YC25P2B)

    • Model:
      YC25P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      25 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1775 RPM
    • Frame Size:
      284T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      73.9
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93.6%
    • C Dimension:
      27.4
    • Bearing Type:
      6210-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      58/28.9 A
    • Weight:
      390.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC25P1BS, 25 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 284TS (YC25P1BS)

    US Motors (Nidec), AC Motor, YC25P1BS, 25 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 284TS (YC25P1BS)

    • Model:
      YC25P1BS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      25 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3560 RPM
    • Frame Size:
      284TS
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      36.9
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • C Dimension:
      26
    • Bearing Type:
      6210-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      57/28.7 A
    • Weight:
      390.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC20P4B, 20 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 324T (YC20P4B)

    US Motors (Nidec), AC Motor, YC20P4B, 20 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 324T (YC20P4B)

    • Model:
      YC20P4B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      20 HP
    • Synchronous RPM:
      900 RPM
    • Rated RPM:
      885 RPM
    • Frame Size:
      324T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      118.7
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      90.2%
    • Bearing Type:
      6211-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      53/26.5 A
    • Weight:
      575.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC20P3B, 20 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 286T (YC20P3B)

    US Motors (Nidec), AC Motor, YC20P3B, 20 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 286T (YC20P3B)

    • Model:
      YC20P3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      20 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1180 RPM
    • Frame Size:
      286T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      89
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • C Dimension:
      27.4
    • Bearing Type:
      6210-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      49/24.4 A
    • Weight:
      460.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC20P2B, 20 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC20P2B)

    US Motors (Nidec), AC Motor, YC20P2B, 20 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC20P2B)

    • Model:
      YC20P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      20 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1770 RPM
    • Frame Size:
      256T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      59.3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      93%
    • C Dimension:
      25
    • Bearing Type:
      6207-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      47/23.5 A
    • Weight:
      375.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC20P1B, 20 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC20P1B)

    US Motors (Nidec), AC Motor, YC20P1B, 20 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 256T (YC20P1B)

    • Model:
      YC20P1B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      20 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3530 RPM
    • Frame Size:
      256T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      29.7
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • C Dimension:
      25
    • Bearing Type:
      6207-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      46/23.1 A
    • Weight:
      375.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC1P4B, 1 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 182T (YC1P4B)

    US Motors (Nidec), AC Motor, YC1P4B, 1 HP, 900 RPM, Three Phase, 230/460 V, 60 Hz, 182T (YC1P4B)

    • Model:
      YC1P4B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      1 HP
    • Synchronous RPM:
      900 RPM
    • Rated RPM:
      865 RPM
    • Frame Size:
      182T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      6.1
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      75.5%
    • C Dimension:
      16
    • Bearing Type:
      6205-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      4.8/2.4 A
    • Weight:
      90.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC1P3B, 1 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 145T (YC1P3B)

    US Motors (Nidec), AC Motor, YC1P3B, 1 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 145T (YC1P3B)

    • Model:
      YC1P3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      1 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1160 RPM
    • Frame Size:
      145T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      4.5
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      82.5%
    • C Dimension:
      13
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      3.8/1.9 A
    • Weight:
      80.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

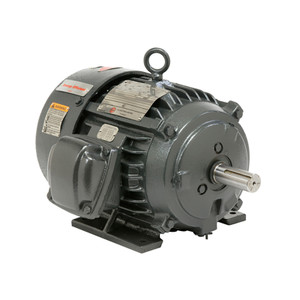

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC1P2B, 1 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 143T (YC1P2B)

    US Motors (Nidec), AC Motor, YC1P2B, 1 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 143T (YC1P2B)

    • Model:
      YC1P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      1 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1760 RPM
    • Frame Size:
      143T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      3
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      85.5%
    • C Dimension:
      13
    • Bearing Type:
      6203-2Z-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      3/1.5 A
    • Weight:
      80.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC15P3B, 15 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 284T (YC15P3B)

    US Motors (Nidec), AC Motor, YC15P3B, 15 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 284T (YC15P3B)

    • Model:
      YC15P3B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1180 RPM
    • Frame Size:
      284T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      66.7
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91.7%
    • C Dimension:
      27.3
    • Bearing Type:
      6210-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      37/18.2 A
    • Weight:
      390.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, YC15P2B, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254T (YC15P2B)

    US Motors (Nidec), AC Motor, YC15P2B, 15 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 254T (YC15P2B)

    • Model:
      YC15P2B
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Explosion Proof
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1775 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      230/460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      44.4
    • Rated Voltage:
      230 V
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      92.4%
    • C Dimension:
      25
    • Bearing Type:
      6207-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      37/18.3 A
    • Weight:
      300.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
