841 Plus World Motor

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) World Motor 841 Plus NEMA Premium Efficient


APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D15P1G, 15 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 254T (8D15P1G)

    US Motors (Nidec), AC Motor, 8D15P1G, 15 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 254T (8D15P1G)

    • Model:
      8D15P1G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3535 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • Construction:
      Cast Iron
    • Bearing Type:
      45BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      13.9 A
    • Weight:
      270.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D15P1C, 15 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 254T (8D15P1C)

    US Motors (Nidec), AC Motor, 8D15P1C, 15 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 254T (8D15P1C)

    • Model:
      8D15P1C
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      15 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3540 RPM
    • Frame Size:
      254T
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      22.3
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      91%
    • Construction:
      Cast Iron
    • Bearing Type:
      45BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      17.4 A
    • Weight:
      270.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D150P2GB, 150 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 445T (8D150P2GB)

    US Motors (Nidec), AC Motor, 8D150P2GB, 150 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 445T (8D150P2GB)

    • Model:
      8D150P2GB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1790 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      440.5
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      137 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D150P2G, 150 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 445T (8D150P2G)

    US Motors (Nidec), AC Motor, 8D150P2G, 150 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 445T (8D150P2G)

    • Model:
      8D150P2G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1790 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      440.5
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      137 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D150P2CB, 150 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 445T (8D150P2CB)

    US Motors (Nidec), AC Motor, 8D150P2CB, 150 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 445T (8D150P2CB)

    • Model:
      8D150P2CB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1790 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      440.4
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      171 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D150P1GS, 150 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 445TS (8D150P1GS)

    US Motors (Nidec), AC Motor, 8D150P1GS, 150 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 445TS (8D150P1GS)

    • Model:
      8D150P1GS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3580 RPM
    • Frame Size:
      445TS
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      220.1
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      133 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D150P1CS, 150 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 445TS (8D150P1CS)

    US Motors (Nidec), AC Motor, 8D150P1CS, 150 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 445TS (8D150P1CS)

    • Model:
      8D150P1CS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      150 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3580 RPM
    • Frame Size:
      445TS
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      220
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      167 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D125P3GB, 125 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 445T (8D125P3GB)

    US Motors (Nidec), AC Motor, 8D125P3GB, 125 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 445T (8D125P3GB)

    • Model:
      8D125P3GB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      551.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      125 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS

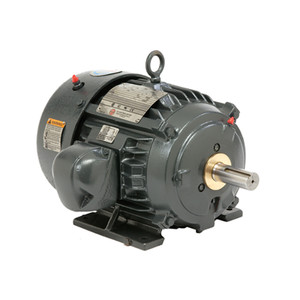

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D125P3G, 125 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 445T (8D125P3G)

    US Motors (Nidec), AC Motor, 8D125P3G, 125 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 445T (8D125P3G)

    • Model:
      8D125P3G
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      551.4
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      125 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D125P3CB, 125 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 445T (8D125P3CB)

    US Motors (Nidec), AC Motor, 8D125P3CB, 125 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 445T (8D125P3CB)

    • Model:
      8D125P3CB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      551.8
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      153 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D125P3C, 125 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 445T (8D125P3C)

    US Motors (Nidec), AC Motor, 8D125P3C, 125 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 445T (8D125P3C)

    • Model:
      8D125P3C
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      445T
    • Rated Supply Voltage:
      460 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      551.8
    • Rated Voltage:
      460 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      153 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, 8D125P2GS, 125 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 444TS (8D125P2GS)

    US Motors (Nidec), AC Motor, 8D125P2GS, 125 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 444TS (8D125P2GS)

    • Model:
      8D125P2GS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      Severe Duty
    • Horsepower Rating:
      125 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1785 RPM
    • Frame Size:
      444TS
    • Rated Supply Voltage:
      575 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      367.3
    • Rated Voltage:
      575 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • Bearing Type:
      65BC03J3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      114 A
    • Weight:
      1.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
