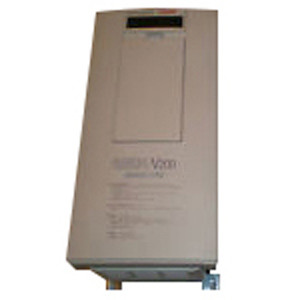

50HP 230V Mitsubishi VFD, Inverter, AC Drive FR-V220E-37K (FR-V220E-37K)

Brand:
MITSUBISHI
Model:
FR-V220E-37K
Condition:
New with Defects or Obsolete
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Drive Details

Manufacturer
Mitsubishi

Series
V200

Model
FR-V220E-37K

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
50 HP

Maximum Amps
166.8 A

Input
3-Phase
200-230V

Output
3-Phase
200-230V

Dimensions
Height: 21.65 in
Width: 17.72 in
Depth: 9.84 in

Enclosure
IP00


Technical Specifications

Model:
FR-V220E-37K
Brand:
MITSUBISHI
Product Condition:
New with Defects or Obsolete
Horsepower Rating:
50 HP
HP Rating @ 150% OL:
50 HP
Rated Amps:
166.8 A
Amp Rating @ 150% OL:
166.8 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
166.8 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 00
Series:
V200
Height:
21.65 in
Width:
17.72 in
Depth:
9.84 in

Product Information

MITSUBISHI V200 Series

Mitsubishi V200 Series Variable Frequency Drive

Standard Features

  • Full torque at zero speed. Digital flux vector controls achieve high response (200 rad/sec) over a wide (1500:1) speed range
  • Tripless operation. Selectable stall prevention function protects against overcurrent tripping.
  • Optional easy-to-use parameter unit. Parameter units are used for operator control, reading and writing parameters, and drive monitoring.
  • Quiet operation. Intelligent power module (IPM) incorporates IGBT transistor technology for quiet motor operation.
  • High functionality. Software configuration with many adjustable parameters allows tailoring the drive to a wide variety of applications.
  • High power factor. A DC link reactor is standard for 75-300 HP. This lowers the required KVA of the supply.
