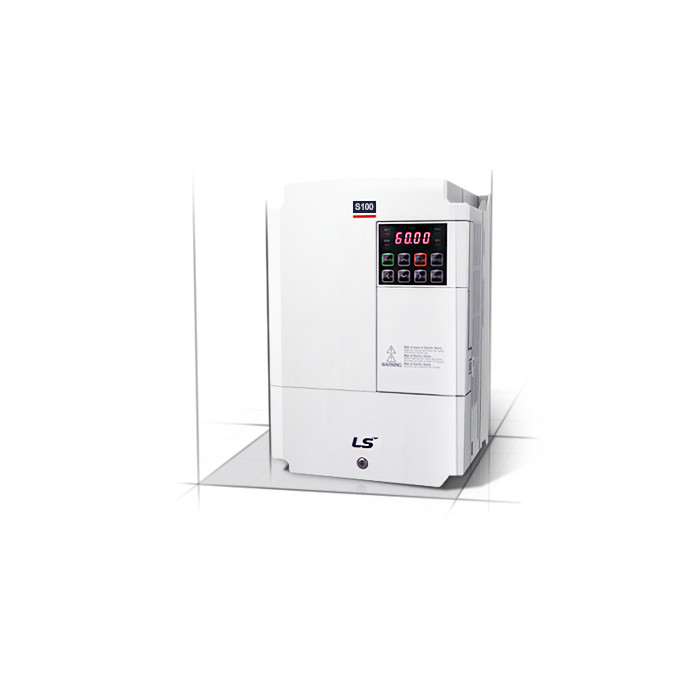

40HP & 30HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0220S100-4EOFNS (LSLV0220S100-4EOFNS)

Brand:
LS
Model:
LSLV0220S100-4EOFNS
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $2,423.55
Online Price: $1,817.66
Adding to cart… The item has been added
  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option

Technical Specifications

Model:
LSLV0220S100-4EOFNS
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
30 HP
Horsepower Rating:
40 HP
HP Rating @ 120% OL:
40 HP
HP Rating @ 150% OL:
30 HP
Rated Amps:
45 A
Amp Rating @ 120% OL:
58 A
Amp Rating @ 150% OL:
45 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
45 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
S100
Rated Amps:
58 A
Height:
13.80 in
Width:
8.66 in
Depth:
7.36 in

Product Information

LS S100 Series

Powerful sensorless control, and a diverse range of user-friendly functions delivers added value to our customers. The S100 VFD is designed for end users who demand performance (200% starting torque at 0.5Hz), while also meeting the needs of global minded OEMs looking to consolidate their VFD portfolio. A new ground up NEMA 4X version is also available, furthering its ability to do more with the same platform.
