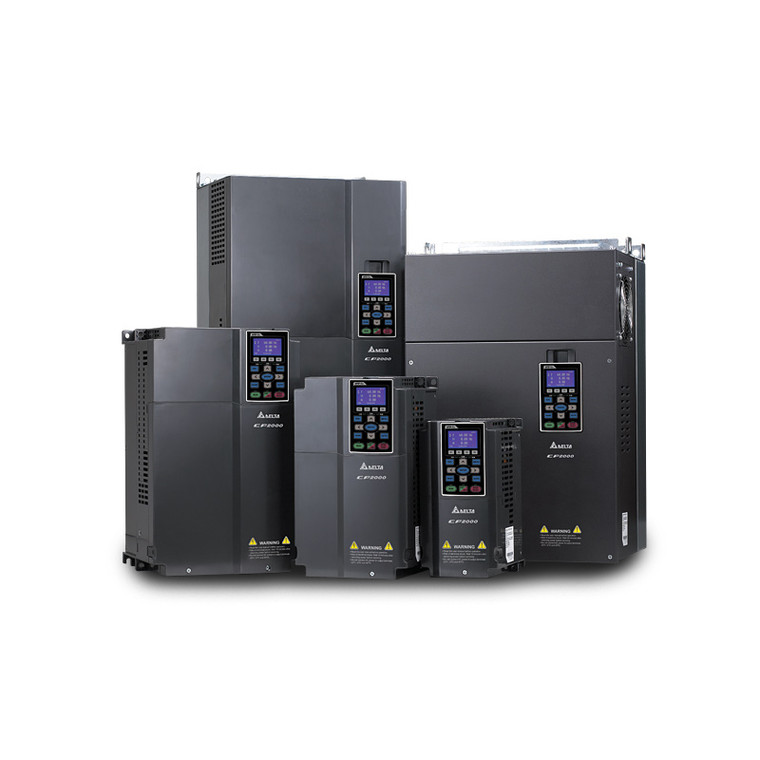

40HP 230V Delta CP2000 VFD, Inverter, AC Drive VFD370CP23A-00 (VFD370CP23A-00)

Brand:
Delta
Model:
VFD370CP23A-00
Condition:
New Surplus
0 Customer Reviews
Out Of Stock
Online Price: $1,099.99
Adding to cart… The item has been added
  • LCD keypad - An easy-to-use text panel with TP Editor software allows users to customize the main page screen
  • Quick setting functions to support self-defined parameter groups and parameter duplication for fast and easy installation
  • Modular design for flexible extension and easy maintenance
  • High-speed communications include BACnet and Modbus. Optional communication cards are available upon purchase: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP and CANopen
  • Extended life cycle
  • Enhanced conformal coating on PCBs for superior durability in critical environments
  • Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur
  • Various modes for fans/pump applications including PID control, sleep/wake up functions, flying start and skip frequency
  • Multi-pumps synchronous control of up to 8 motors at one time and provides fixed amount and fixed time circulation control
  • Built-in 10K steps PLC programming capacity and Real Time Clock (RTC)

Technical Specifications

Model:
VFD370CP23A-00
Brand:
Delta
Product Condition:
New Surplus
Horsepower Rating:
40 HP
HP Rating @ 150% OL:
40 HP
Rated Amps:
146 A
Amp Rating @ 150% OL:
146 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
146 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Frame Size:
D1
Series:
CP2000
Height:
21.65 in
Width:
12.99 in
Depth:
10.83 in

Product Information

Delta CP2000 Series

Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.
