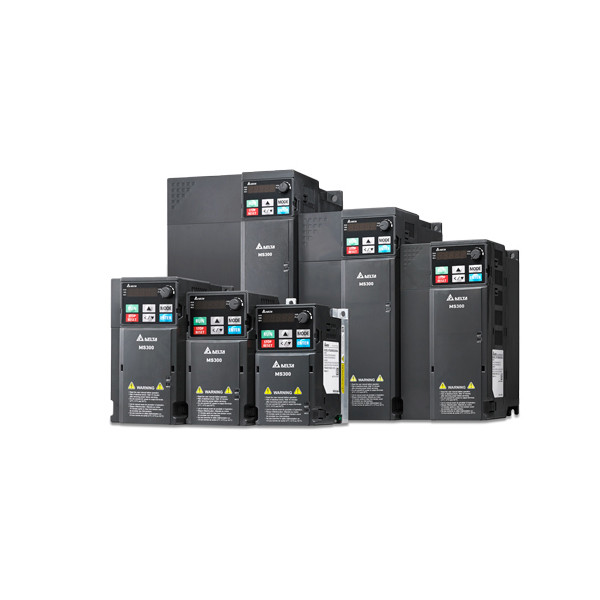

0.25HP 230V Delta MS300 VFD, Inverter, AC Drive VFD1A6MS21AFSAA (VFD1A6MS21AFSAA)

Brand:
Delta
Model:
VFD1A6MS21AFSAA
Condition:
New
0 Customer Reviews
In Stock
List Price:  $356.00
Online Price: $166.00
Adding to cart… The item has been added
  • Supports Open loop control of IM and PM motors
  • Output frequency:
  • Standard models: 0 to 599 Hz
  • High speed models: 0 to 1500 Hz (V/f Control)
  • Dual rating design:
  • 120% for 60 seconds for Normal Duty (ND)
  • 150% for 60 seconds for Heavy Duty (HD)
  • Built-in PLC program with 2K steps capacity
  • Built-in brake choppers for the entire series
  • Removable 5-digit LED keypad for remote operation
  • Safety standard compliance: Safe Torque Off (SIL2/PLd)
  • Multi-motor Control?built-in four IM motor control parameters
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
  • One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
  • One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP,
  • DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT

Technical Specifications

Model:
VFD1A6MS21AFSAA
Brand:
Delta
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
0.25 HP
Rated Amps:
1.6 A
Amp Rating @ 120% OL:
1.8 A
Amp Rating @ 150% OL:
1.6 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
1.6 A
Phase Rating:
1 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Single Phase
Enclosure Rating:
IP 20
Frame Size:
B3
Series:
MS300
Rated Amps:
1.8 A
Height:
5.59 in
Width:
2.83 in
Depth:
6.26 in

Product Information

Delta MS300 Series

Delta's MS300 series is a standard compact vector control drive that inherits Delta's superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system - all included in the MS300 series with drive size reduced up to 40%.
